| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

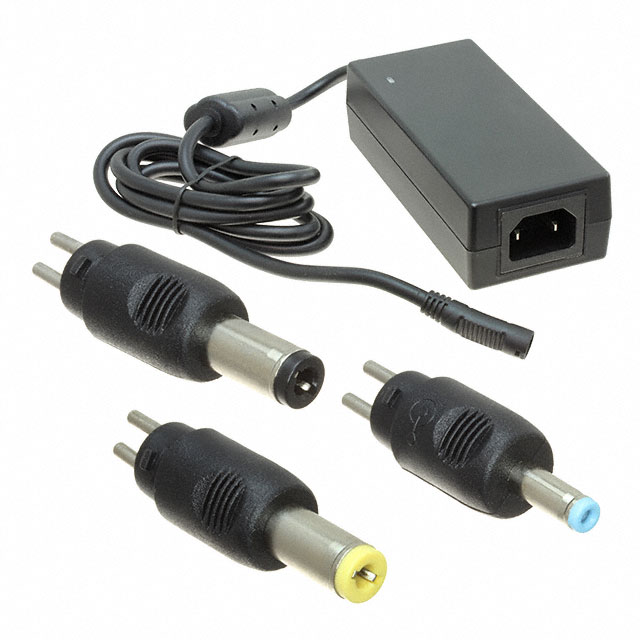

This AC/DC desktop adapter from GlobTek, Inc., model TR9WB6722T00CIMR6B, delivers 40 watts of power with a stable 5.95V output and a maximum current of 6.72A. Designed for versatility, it operates within a wide input voltage range of 90-264 VAC and features Level VI efficiency, minimizing energy waste.
The adapter is suitable for ITE (Commercial) and Medical applications, ensuring reliable power delivery for sensitive equipment. Its compact desktop (Class II) form factor measures 117.5mm x 53.5mm x 34.2mm, making it convenient for various setups. The output connector supports a Barrel Plug Kit with multiple common sizes, including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
Key specifications include an IEC 320-C18 input connector and a cord length of 1.20 meters. The operating temperature range is -20°C to 40°C. Compliance includes ROHS3, with REACH unaffected status and MSL 1. The adapter is approved by multiple agencies including CB, CCC, CE, cETLus, EAC, PSE, RCM, S-Mark, UkrSEPRO, and VCCI.
The adapter has an output voltage of 5.95V and a maximum output current of 6.72A.
The adapter has a power rating of 40W.
The adapter meets Level VI efficiency standards.
The operating temperature range is -20°C to 40°C.
The dimensions are 117.5mm in length, 53.5mm in width, and 34.2mm in height.
It supports a Barrel Plug Kit with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm options.
The adapter uses an IEC 320-C18 input connector.
