| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

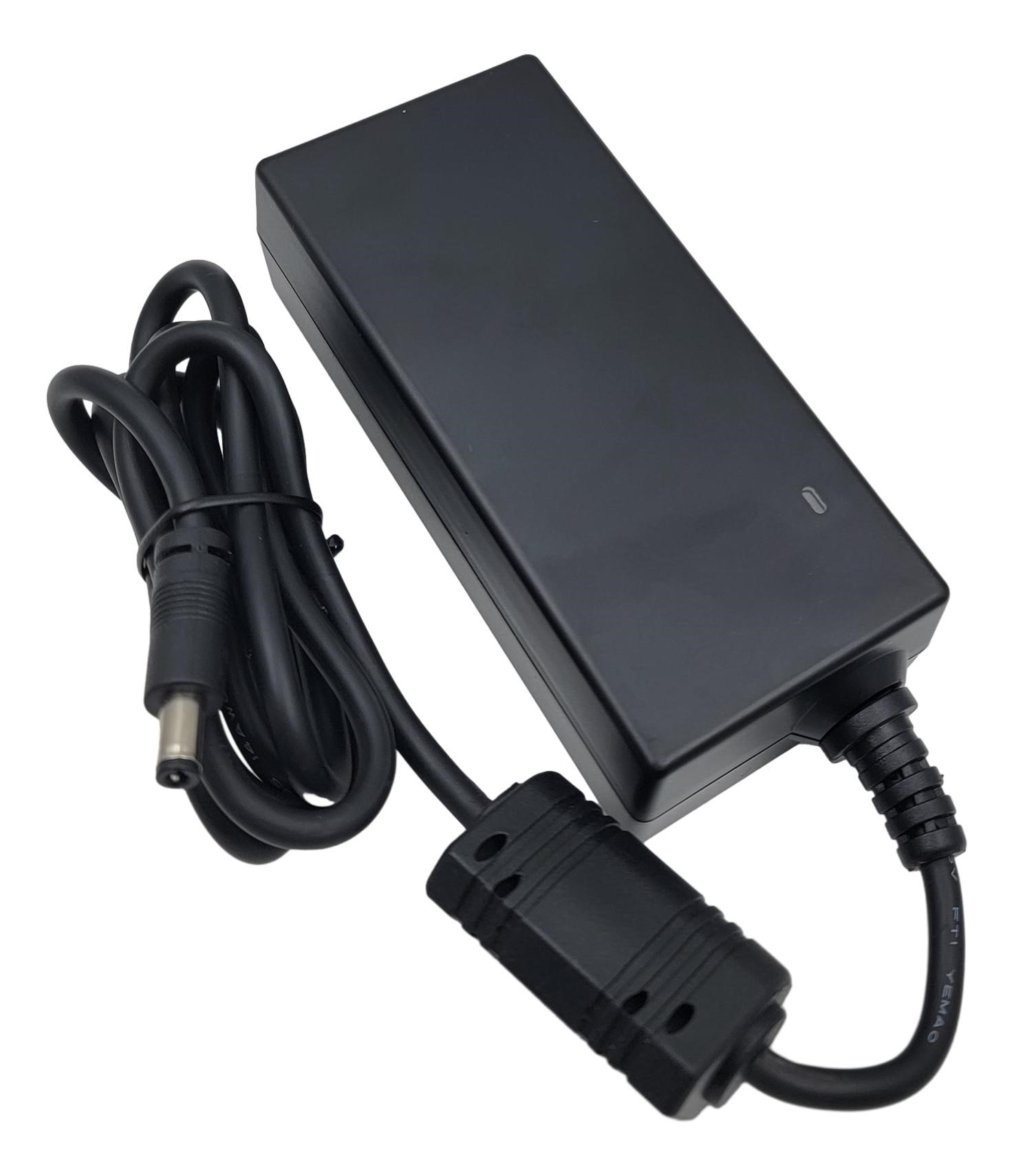

The GlobTek TR9WA8000LCPIM(R6B) is a regulated switchmode AC-DC power supply designed for desktop applications. It operates with an input voltage range of 100-240V AC at 50-60Hz, utilizing an IEC 60320/C18 input connector. The adapter delivers a stable 5V output at 8A, providing a total power of 40W.
This power supply meets USA DOE Level VI and EU Eco-design Directive 2009/125/EC efficiency standards, ensuring energy conservation. It features a compact desktop form factor (Class II) with dimensions of 117.5 x 53.5 x 34.2 mm. The output is delivered via a 5.5mm x 2.5mm barrel plug with a positive center polarity and a cord length of 1.20 meters.
Designed for versatility, the TR9WA8000LCPIM(R6B) is suitable for various applications including Household Appliances, ITE (Commercial), and Medical devices. It operates within an ambient temperature range of -20°C to 40°C and has a low no-load power consumption of 75mW maximum. The unit is compliant with numerous international standards including CB, CE, cETLus, ETL, and PSE.
The TR9WA8000LCPIM(R6B) provides a 5V output at 8A.
The total power output of the TR9WA8000LCPIM(R6B) is 40W.
The TR9WA8000LCPIM(R6B) uses an IEC 60320/C18 input connector.
The operating temperature range for the TR9WA8000LCPIM(R6B) is -20°C to 40°C.
The TR9WA8000LCPIM(R6B) meets USA DOE Level VI and EU Eco-design Directive efficiency standards.
