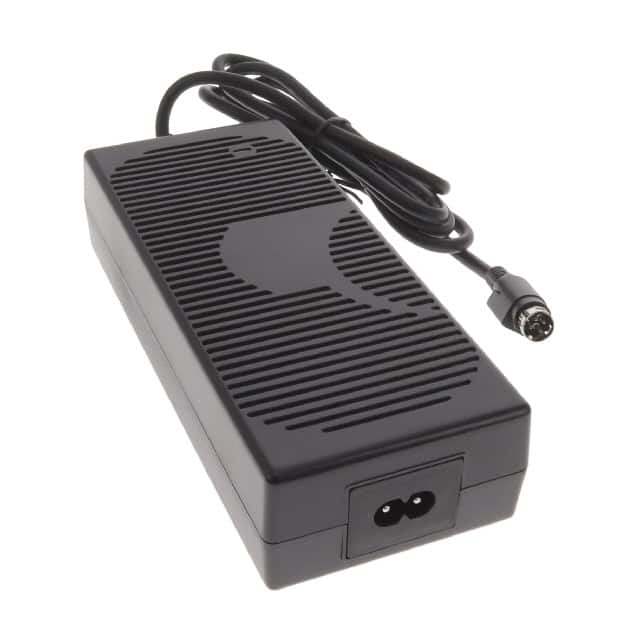

The GlobTek TR9KZ8421YL4IMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It delivers a robust 160W of power with a 19V output at 8.42A.
This power adapter operates with a universal input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international applications. It meets Level VI efficiency standards and complies with Eco-design Directive 2009/125/EC and (EU) 2019/1782, ensuring energy efficiency.
The TR9KZ8421YL4IMR6B features an IEC 60320/C8 input connector and a 4-pin locking Kycon output connector. Its compact dimensions are 176.5mm x 74.0mm x 40.0mm. The operating temperature range is -10°C to 40°C, and it has a low no-load power consumption of 150mW maximum.
This power supply is approved by multiple agencies including CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, S-Mark, and VCCI. It is designed for applications in Household Appliances, ITE (Commercial), and Medical fields. The input cord is sold separately.
The TR9KZ8421YL4IMR6B provides an output voltage of 19.0V at 8.42A.
The input voltage range is 100-240 VAC.
The power rating is 160 W.
The operating temperature range is -10°C to 40°C.
It meets Level VI efficiency standards and complies with Eco-design Directive 2009/125/EC, (EU) 2019/1782.
It uses an IEC 60320/C8 input connector.
The dimensions are 176.5mm x 74.0mm x 40.0mm.
