| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

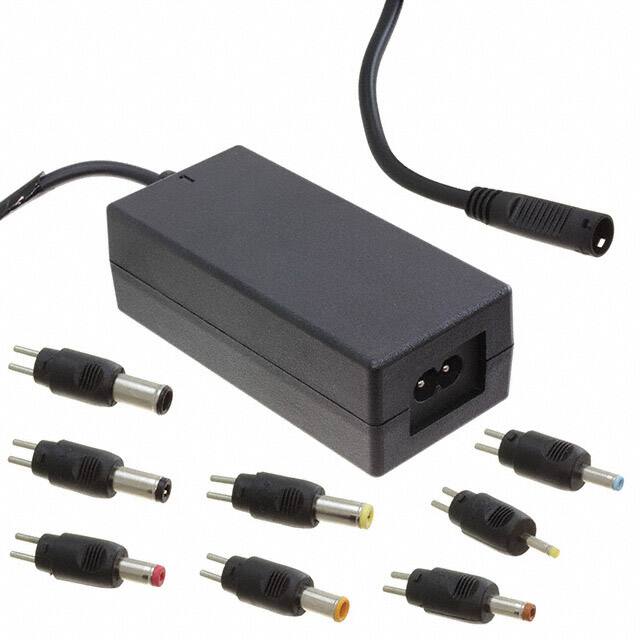

The GlobTek TR9KZ6316T00-IM(R6B) is a versatile AC/DC desktop adapter designed for a wide range of applications including household appliances, ITE commercial, and medical equipment. It delivers a stable 19V output with a maximum current of 6.32A, providing up to 120W of power.
This adapter features a Level VI efficiency rating, ensuring reduced energy consumption. The input connector is a standard IEC 320-C8, and it comes with a cord length of 1.20m. The output connector is a flexible Barrel Plug Kit, compatible with multiple sizes including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
Operating within a temperature range of -20°C to 40°C, the TR9KZ6316T00-IM(R6B) has a compact desktop form factor (Class II) with dimensions of 149.3mm x 62.8mm x 34.0mm. It complies with numerous international standards, including 60335-1, 60601-1-11, and 62368-1, and has received approvals from agencies such as CE, ETL, and PSE.
The adapter provides a 19V output at 6.32A.
The maximum power output is 120W.
The adapter has an efficiency rating of Level VI.
The adapter can operate between -20°C and 40°C.
It uses an IEC 320-C8 input connector.
It comes with a Barrel Plug Kit supporting 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm sizes.
It complies with standards including 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61347-1, and 62368-1.
