| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

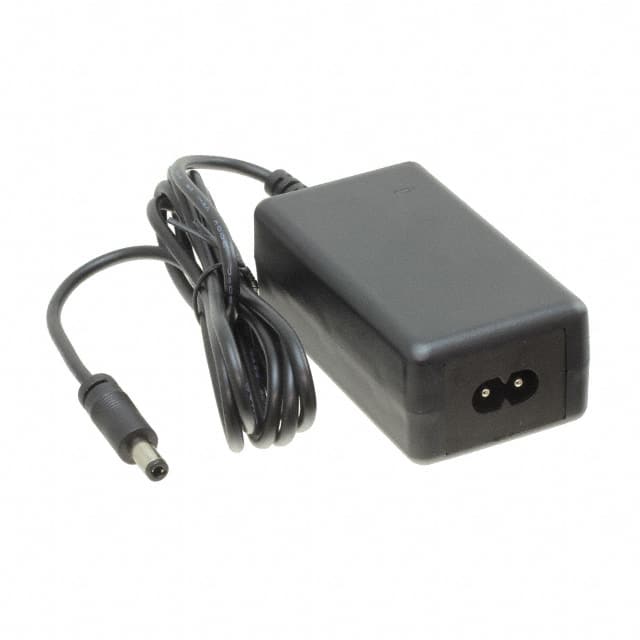

This GlobTek, Inc. TR9KI750CCP-IMR6B is a versatile AC/DC external desktop adapter designed for various applications including household appliances, ITE (Commercial), and medical devices. It delivers a stable 24V output at a maximum current of 750mA, providing a total power of 18W. The adapter meets Level VI efficiency standards, ensuring optimal energy consumption.
Featuring an IEC 320-C8 input connector and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output, this Class II adapter is suitable for international use with an input voltage range of 90-264 VAC. Its compact dimensions of 87.0mm x 47.0mm x 32.0mm make it a space-saving solution. The operating temperature range is from -20°C to 40°C, and it comes in a bulk package.
Compliance is assured with approvals from agencies such as CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI. The adapter also adheres to RoHS3 standards and is REACH unaffected. The input type requires a cord, which is sold separately.
The TR9KI750CCP-IMR6B adapter has an output voltage of 24V and a maximum output current of 750mA.
The TR9KI750CCP-IMR6B adapter has a power rating of 18W.
The adapter accepts an input voltage range of 90-264 VAC.
The TR9KI750CCP-IMR6B adapter meets Level VI efficiency standards.
The dimensions of the TR9KI750CCP-IMR6B adapter are 87.0mm x 47.0mm x 32.0mm.
The adapter uses a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 11.0mm dimensions.
The operating temperature range for the TR9KI750CCP-IMR6B adapter is -20°C to 40°C.
