| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

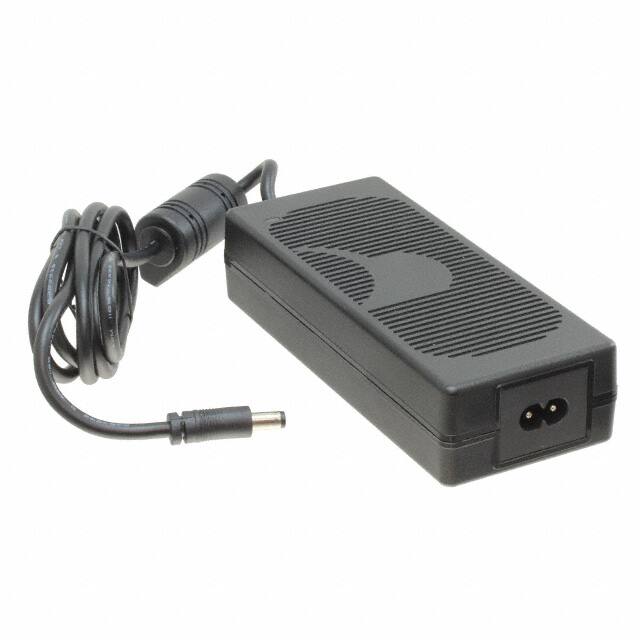

The GlobTek, Inc. TR9KI5000LCP-IM(R6B) is an AC/DC desktop adapter designed for various applications including household appliances, ITE (Commercial), and Medical. It provides a stable 24V output with a maximum current of 5A, delivering a total power of 120W.
This adapter features a Level VI efficiency rating, ensuring optimal energy consumption. It includes an IEC 320-C8 input connector and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. The adapter operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW maximum.
Its dimensions are 149.3mm in length, 62.8mm in width, and 34.0mm in height, classifying it as a Desktop (Class II) unit. The input type requires a cord, sold separately, with an available length of 47.2" (1.20m).
The TR9KI5000LCP-IM(R6B) complies with numerous international standards, including 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61347-1, and 62368-1, and is approved by agencies such as CB, CCC, CE, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, and VCCI, making it suitable for international use.
The output is 24V DC at 5A, providing 120W of power.
It uses a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, 11.0mm length, with positive center polarity.
The operating temperature range is -20°C to 40°C.
It meets Level VI efficiency standards with a maximum no-load power consumption of 150mW.
The adapter measures 149.3mm (5.88 inches) in length, 62.8mm (2.47 inches) in width, and 34.0mm (1.34 inches) in height.
It carries CB, CCC, CE, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, and VCCI approvals.
