| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

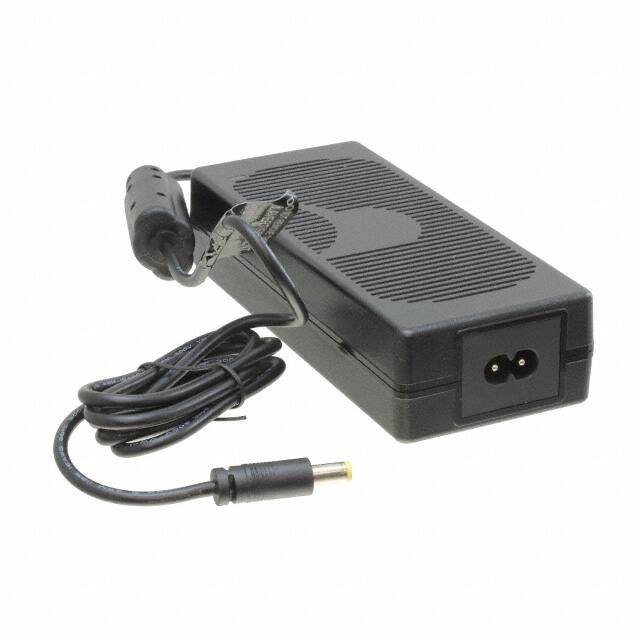

The GlobTek, Inc. TR9KI5000CCP-IM(R6B) is a versatile AC/DC desktop adapter designed for various applications, including household appliances, ITE (Commercial), and medical devices. It delivers a stable 24V output with a maximum current of 5A, providing a total power of 120W.
This adapter meets Efficiency Level VI standards, ensuring optimal energy consumption. It operates with a wide input voltage range of 90-264 VAC, making it suitable for international use. The device features a standard IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.
With dimensions of 149.3mm x 62.8mm x 34.0mm, it is designed as a Class II desktop unit. The operating temperature range is from -20°C to 40°C. The adapter complies with numerous international standards, including 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61347-1, and 62368-1, and is RoHS3 Compliant.
The TR9KI5000CCP-IM(R6B) is supplied in bulk packaging. Its input type is a cord, sold separately, and it has a cord length of 1.20m.
The TR9KI5000CCP-IM(R6B) adapter has an output voltage of 24V and a maximum output current of 5A.
The power rating of the TR9KI5000CCP-IM(R6B) adapter is 120W.
The TR9KI5000CCP-IM(R6B) adapter meets Energy Efficiency Level VI.
The operating temperature range for the TR9KI5000CCP-IM(R6B) adapter is -20°C to 40°C.
The dimensions of the TR9KI5000CCP-IM(R6B) adapter are 149.3mm in length, 62.8mm in width, and 34.0mm in height.
The TR9KI5000CCP-IM(R6B) adapter uses an IEC 320-C8 input connector and a Barrel Plug (2.1mm I.D. x 5.5mm O.D. x 11.0mm) output connector.
The TR9KI5000CCP-IM(R6B) adapter complies with standards including 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61347-1, and 62368-1.
