| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

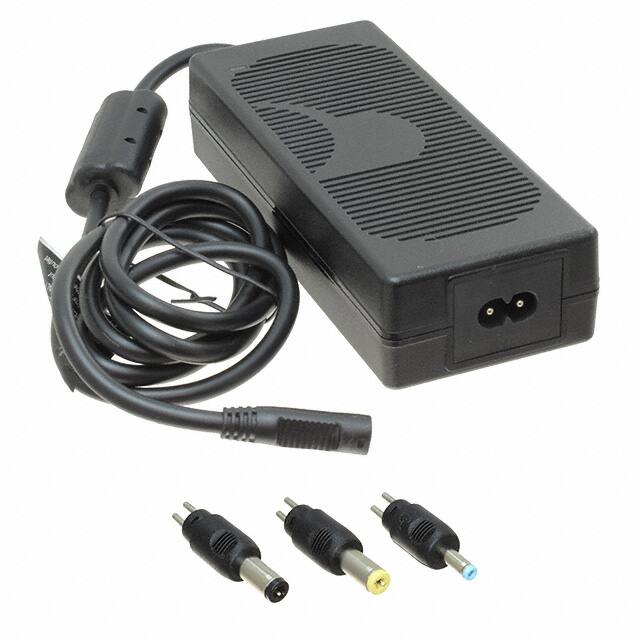

The GlobTek TR9KI3750T00-IM(R6B) is a versatile AC/DC desktop power adapter designed for various applications including household appliances, ITE commercial, and medical equipment. It delivers a stable 24V DC output at 3.75A, providing a total power of 90W.
This adapter features a Level VI efficiency rating, ensuring optimal energy consumption. It utilizes an IEC 320-C8 input connector and comes with a kit for multiple output barrel plug sizes, including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm. The unit operates within a temperature range of 0°C to 50°C and has a low no-load power consumption of 150mW maximum.
Designed for international use, the TR9KI3750T00-IM(R6B) complies with numerous safety and performance standards, including CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI. Its dimensions are 149.4mm x 62.6mm x 33.5mm, making it a compact desktop solution. The input cord is sold separately and has a length of 1.20m.
The TR9KI3750T00-IM(R6B) adapter provides an output voltage of 24VDC and an output current of 3.75A.
The power rating of the TR9KI3750T00-IM(R6B) adapter is 90W.
The TR9KI3750T00-IM(R6B) adapter meets Level VI efficiency standards.
The adapter operates within a temperature range of 0°C to 50°C.
The adapter uses an IEC 320-C8 input connector.
The adapter comes with a Barrel Plug Kit that includes options for 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
Yes, the TR9KI3750T00-IM(R6B) adapter is RoHS3 Compliant.
