| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

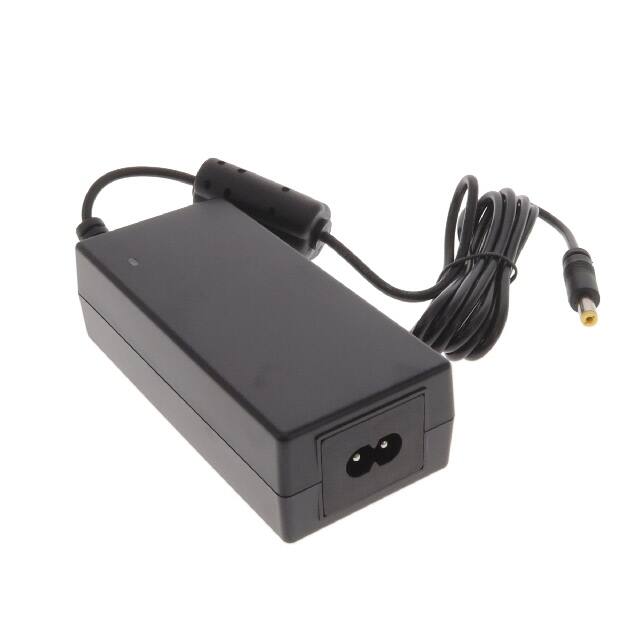

The GlobTek TR9KI2700CCPCIMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a continuous output power of 65W, with a voltage of 24.0V and a current rating of 2.7A.
This power adapter features an input rating of 100-240V~ at 50-60Hz, utilizing an IEC 60320/C8 input connector. The output is delivered via a female barrel connector measuring 5.5*2.1*11mm with a center positive pinout. It is designed with a compact form factor, measuring 117.5mm in length, 53.5mm in width, and 34.2mm in height.
The TR9KI2700CCPCIMR6B is compliant with USA DoE Level VI and Eco-Design Directive 2009/125/EC efficiency standards, ensuring energy efficiency. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW maximum.
This power supply has received numerous agency approvals, including cETLus, CE, FCC, PSE, and UKCA, making it suitable for international applications in ITE (Commercial) and Medical fields. The input cord is sold separately.
The input voltage range is 100-240 VAC at 50-60 Hz.
The output is 24V at 2.7A with 65W maximum power.
It operates from -20°C to 40°C.
Yes, it meets Level VI efficiency and CoC Tier 2 with a maximum no-load power consumption of 150 mW.
It uses an IEC 60320/C8 inlet connector.
The output is a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarity.
It complies with medical standard 60601-1-11/60601-1-2 and ITE standard 62368-1.
