| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

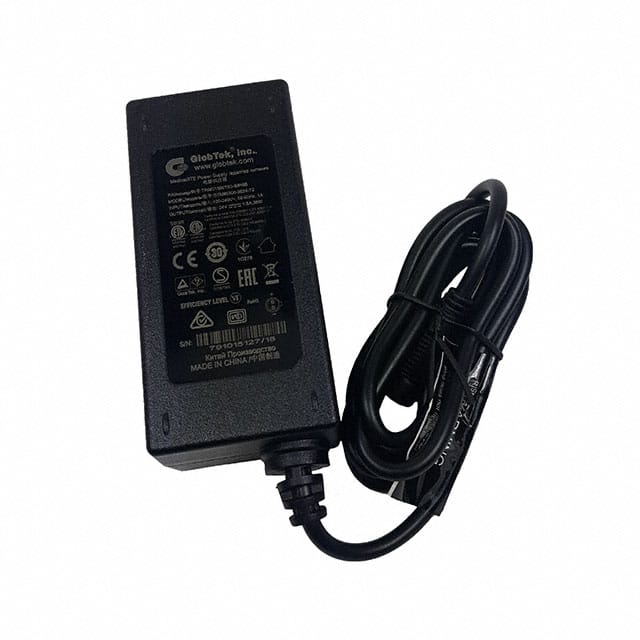

This GlobTek, Inc. AC/DC desktop adapter, part number TR9KI1500T00-IMR6B, delivers 36 watts of power with a 24V DC output at 1.5A. It is designed for international use and features Level VI efficiency.
The adapter has a compact desktop form factor (Class II) with dimensions of 105.0mm x 50.0mm x 35.5mm. It utilizes an IEC 320-C8 input connector and comes with a 59-inch cord. The output connector is a barrel plug kit supporting multiple sizes.
Key specifications include an operating temperature range of -20°C to 40°C and a low no-load power consumption of 75mW maximum. The adapter complies with various international standards including CB, CCC, CE, EAC, ETL, PSE, and RCM.
Applications for this adapter include household appliances, ITE (Commercial), and medical equipment, making it a versatile power solution for various electronic devices.
100-240 VAC.
24 VDC at 1.5 A.
-20°C to 40°C.
Level VI.
Barrel plug kit with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm tips.
Complies with UL 1310, IEC 60335-1, IEC 60601-1-11, IEC 60601-1-2, IEC 60950-1, and IEC 62368-1.
105.0mm x 50.0mm x 35.5mm.
