| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

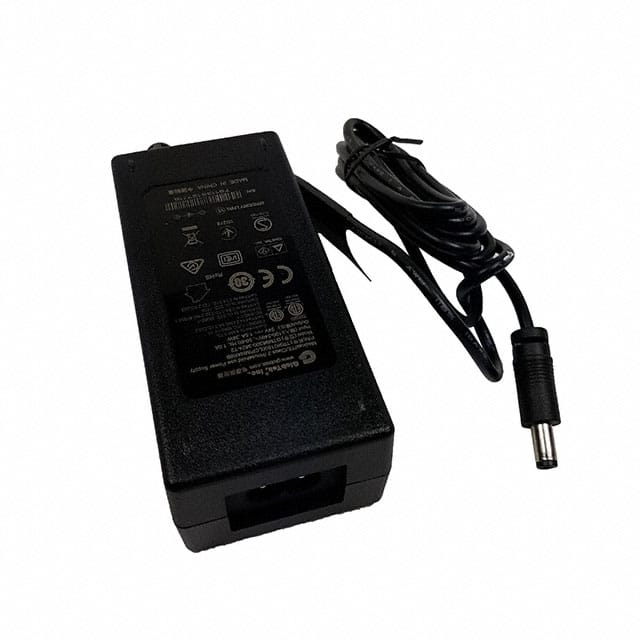

The GlobTek TR9KI1500LCPIMNAR6B is a regulated switchmode AC-DC power supply designed for desktop use. It provides a stable 24V output at 1.5A, delivering a total of 36W of power.
This power supply meets USA DoE Level VI efficiency standards and is suitable for a variety of applications including medical, ITE (Information Technology Equipment), and household use. It features an input rating of 100-240V~ at 50-60 Hz and utilizes an IEC 60320/C8 input connector.
The output is delivered via a female barrel connector measuring 5.5mm outside diameter and 2.5mm inside diameter, with a length of 11mm. The cord length is approximately 1.53 meters (60.2 inches), and the output polarization is center positive. The unit has dimensions of 105.0mm x 50.0mm x 35.5mm and operates within a temperature range of -20°C to 40°C.
Approvals include ETL, CB, CE, PSE, RCM, and more, indicating compliance with international safety and performance standards. The unit is designed as a Class II desktop adapter.
100-240 VAC at 50-60 Hz.
24V at 1.5A.
36W.
Level VI.
-20°C to 40°C.
Desktop (Class II).
75mW max.
