| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

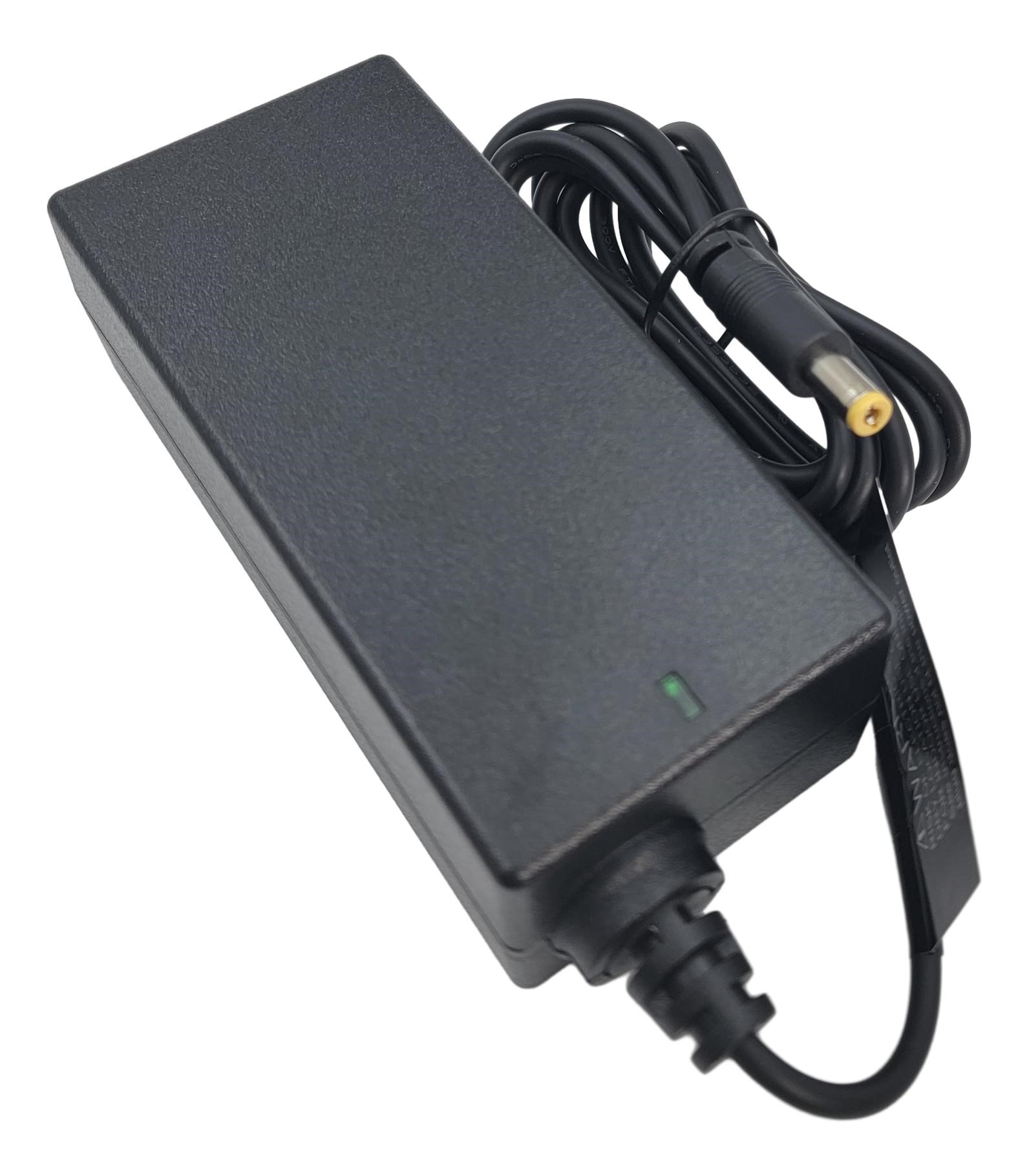

The GlobTek, Inc. TR9KI1500CCPIMNAR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a continuous output power of 36W, with a voltage output of 24.0V and a current rating of 1.5A.
This adapter meets USA DoE Level VI efficiency standards and is suitable for medical, ICT, ITE, and household applications. It operates within an input voltage range of 100-240V AC at 50-60 Hz and utilizes an IEC 60320/C8 input connector. The output is delivered via a 5.5*2.1*11mm female barrel connector with positive center polarization.
Key specifications include a compact desktop form factor (Class II) with dimensions of 105.0mm x 50.0mm x 35.5mm. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 75mW maximum. The unit is compliant with numerous international standards including CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI.
The TR9KI1500CCPIMNAR6B provides an output voltage of 24.0V at 1.5A.
This adapter has a power rating of 36W.
The adapter meets the Level VI efficiency standard.
The operating temperature range is -20°C to 40°C.
It uses an IEC 320-C8 input connector.
The output connector is a barrel plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
The cord length is 1.50 meters (59 inches).
