| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

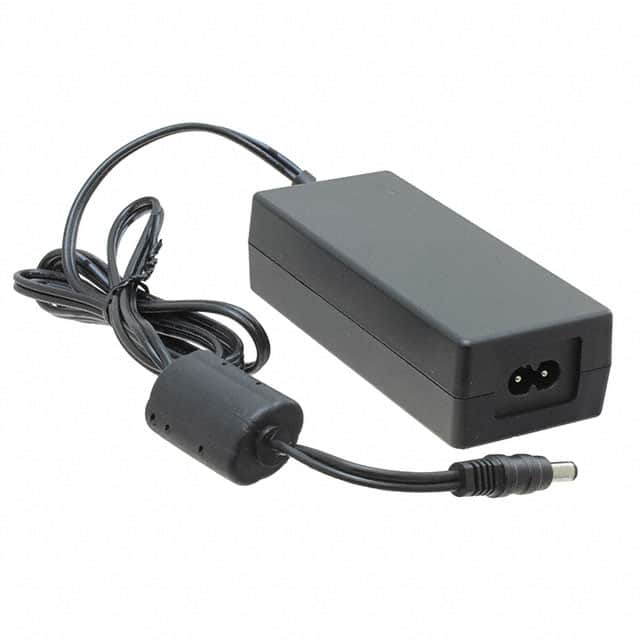

This AC/DC desktop adapter from GlobTek, Inc., part number TR9KH2222LCP-N(R6B), delivers 40 watts of power with an 18V output voltage and 2.22A current.
Designed for ITE (Commercial) applications, it features a Level VI efficiency rating and a low no-load power consumption of 75mW maximum. The adapter operates within a temperature range of 0°C to 40°C.
Connectivity includes an IEC 320-C8 input connector and a barrel plug output with a positive center, measuring 2.5mm ID x 5.5mm OD x 11.0mm. The adapter's dimensions are 111.0mm x 52.0mm x 32.3mm. It is designed as a Desktop (Class II) unit and requires a separate input cord.
Compliance is certified by multiple agencies including CB, CE, cULus, EAC, FCC, LPS, PSE, UKRSepro, and VCCI, adhering to standards like 60950-1. The unit is RoHS3 Compliant, REACH Unaffected, and has an MSL of 1.
This adapter provides an output voltage of 18V at 2.22A.
The adapter has a power rating of 40W.
The adapter meets Level VI efficiency standards.
The adapter can operate between 0°C and 40°C.
It features an IEC 320-C8 input connector and a barrel plug output (2.5mm I.D. x 5.5mm O.D.).
Yes, this adapter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
