| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

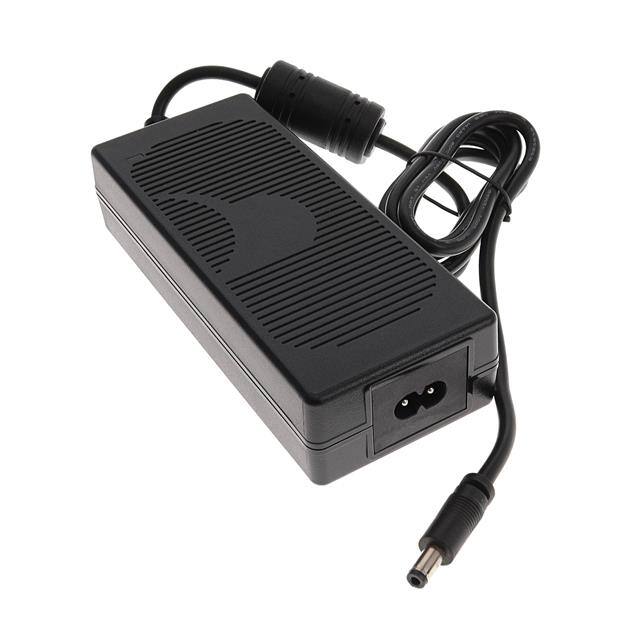

This AC/DC desktop adapter from GlobTek, Inc., part number TR9KG8000LCP-IM(R6B), provides a reliable power solution with 120W of power and a 15V output voltage.
Key electrical specifications include a maximum output current of 8A and an efficiency rating of Level VI, CoC Tier 2. The adapter operates within an input voltage range of 80 to 264 VAC and features a low no-load power consumption of 150mW.
The unit is designed for versatile applications, including Household Appliances, ITE (Commercial), and Medical sectors. It supports international utilization and complies with numerous safety standards such as 60335-1, 60601-1, 60950-1, and 62368-1.
Mechanically, the adapter has dimensions of 149.3mm x 62.8mm x 34.0mm and utilizes a Class II desktop form factor. It requires a separate input cord and features a positive center barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11mm). The operating temperature range is -10°C to 40°C.
The TR9KG8000LCP-IM(R6B) has an output voltage of 15V and a maximum output current of 8A.
The adapter has a power rating of 120W.
The efficiency level is Level VI, CoC Tier 2.
The operating temperature range is -10°C to 40°C.
The dimensions are 149.3mm in length, 62.8mm in width, and 34.0mm in height.
It uses an IEC 320-C8 input connector.
The RoHS status is RoHS3 Compliant.
