| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

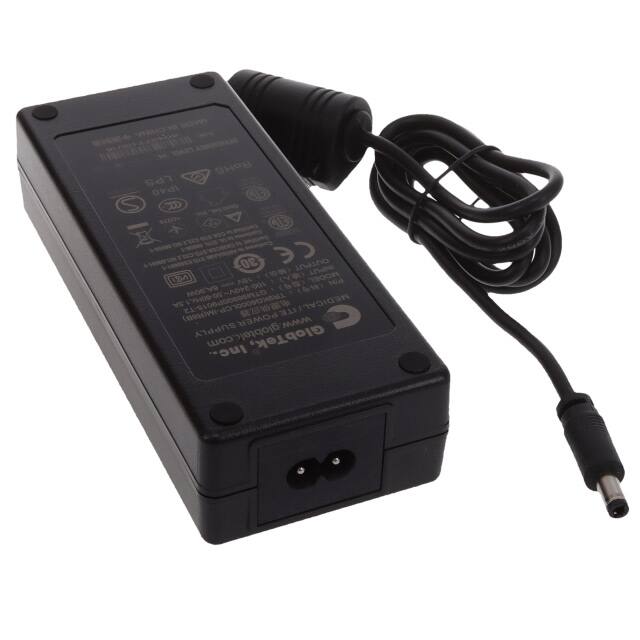

The GlobTek, Inc. TR9KG6000LCP-IM(R6B) is an AC/DC desktop adapter designed for various applications including household appliances, ITE (Commercial), and medical devices. It delivers a 15V output at a maximum current of 6A, providing a total power of 90W.
This adapter features a universal input voltage range of 90-264 VAC and an IEC 320-C8 input connector. It is designed with a positive center polarization and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm). The adapter operates within a temperature range of 0°C to 50°C and has a no-load power consumption of 150mW (Max).
Compliance is met with standards such as 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61347-1, and 62368-1. It also holds approvals from agencies including CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI. The adapter has dimensions of 149.3mm x 62.8mm x 34.0mm and comes in bulk packaging.
15V
6A
90W
90 to 264 VAC
150mW maximum
0°C to 50°C
Bulk
