| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

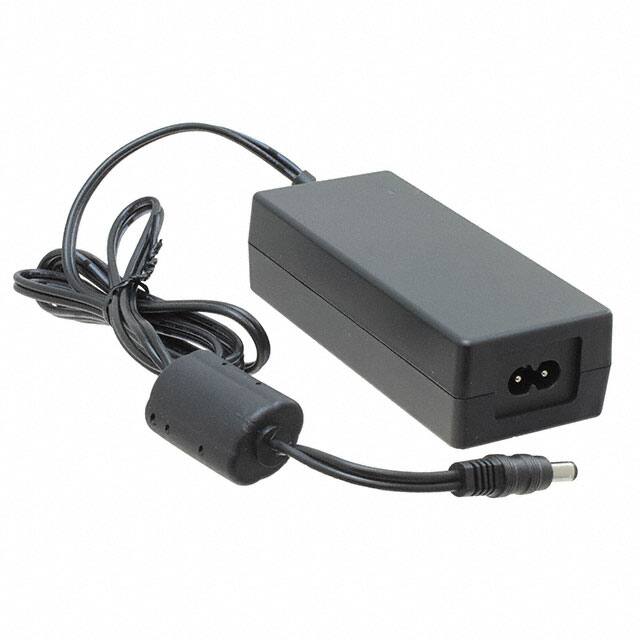

The GlobTek, Inc. TR9KG4000LCP-N(R6B) is an AC/DC external desktop adapter designed for household appliances and ITE commercial applications. It provides a stable 15V output at a maximum current of 4A, delivering a total power of 60W.
This adapter features a Level VI efficiency rating and operates within a wide input voltage range of 90 to 264 VAC. It utilizes an IEC 320-C8 input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm). The adapter is designed in a desktop (Class II) form factor and has dimensions of 121.0mm x 52.0mm x 33.0mm.
Compliance with international standards such as 60335-1 and 60950-1 is noted, along with various agency approvals including CB, CCC, CE, cULus, EAC, FCC, GS, LPS, RCM, PSE, UKRSepro, and VCCI. The operating temperature range is from 0°C to 40°C. The cord length is 1.20 meters (47.2 inches).
The TR9KG4000LCP-N(R6B) has an output voltage of 15V and a maximum output current of 4A.
The TR9KG4000LCP-N(R6B) adapter has a power rating of 60W.
The input voltage range for the TR9KG4000LCP-N(R6B) is 90 to 264 VAC.
The operating temperature range for the TR9KG4000LCP-N(R6B) is 0°C to 40°C.
The TR9KG4000LCP-N(R6B) uses a Barrel Plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
