| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

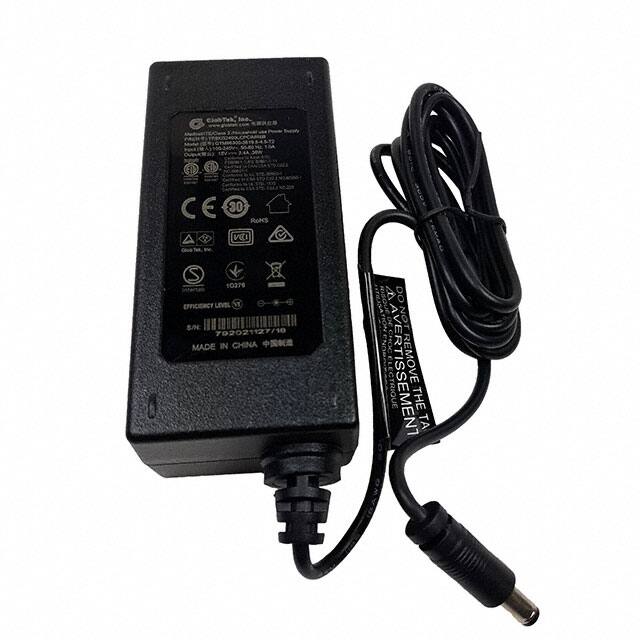

The GlobTek, Inc. TR9KG2400LCPCIMR6B is a versatile AC/DC desktop adapter designed for various applications including household appliances, ITE commercial equipment, and medical devices. It provides a stable 15V output with a maximum current of 2.4A, delivering a total power of 36W.
This adapter features a Level VI efficiency rating, ensuring optimal energy consumption. The input connector is a standard IEC 320-C8, and it utilizes a common barrel plug output with dimensions of 2.5mm I.D. and 5.5mm O.D., featuring a positive center polarization. The unit operates within a temperature range of -20°C to 40°C.
With its compact desktop form factor (Class II) and international region utilization, the TR9KG2400LCPCIMR6B is suitable for global deployments. It is compliant with numerous safety standards including CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, and adheres to standards like 60335-1 and 60601-1-11.
15V.
2.4A.
36W.
Level VI.
-20°C to 40°C.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm, positive center.
CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI.
