| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

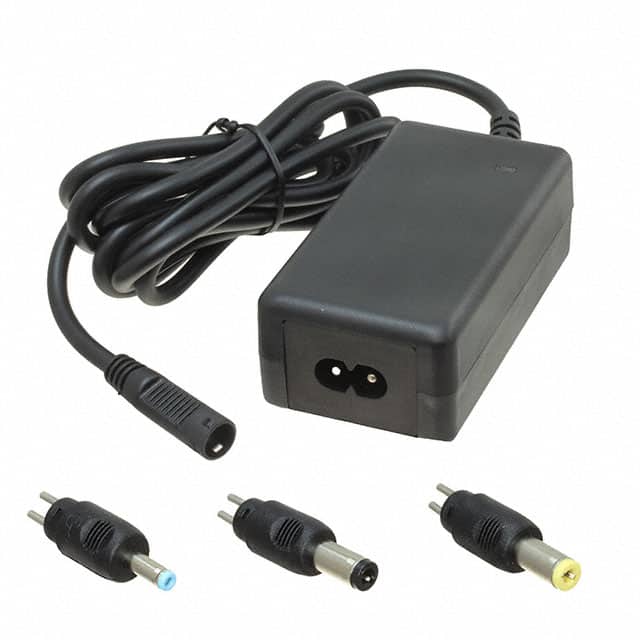

This AC/DC desktop adapter from GlobTek, Inc., model TR9KG1200T00-IMR6B, delivers 18 watts of power with a 15V output at a maximum current of 1.2A. It is designed for international use, accepting an input voltage range of 90 to 264 VAC.
The adapter features Level VI efficiency, ensuring optimal power consumption. Its input connector is an IEC 320-C8, and it offers multiple output connector options via a barrel plug kit, including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
With a compact form factor of 87.0mm x 47.0mm x 32.0mm, this Class II adapter is suitable for applications in household appliances, ITE (Commercial), and medical devices. The operating temperature range is -20°C to 40°C. It is compliant with numerous safety standards including CB, CCC, CE, cETLus, ETL, FCC, UL, and more.
The TR9KG1200T00-IMR6B is supplied in bulk packaging. The input cord is sold separately.
The adapter has a 15V output voltage and a maximum output current of 1.2A.
The adapter has a power rating of 18W.
The adapter accepts an input voltage range of 90 to 264 VAC.
The adapter meets Level VI efficiency standards.
The operating temperature range is -20°C to 40°C.
The adapter dimensions are 87.0mm x 47.0mm x 32.0mm.
It uses a Barrel Plug Kit with options for 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
