| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

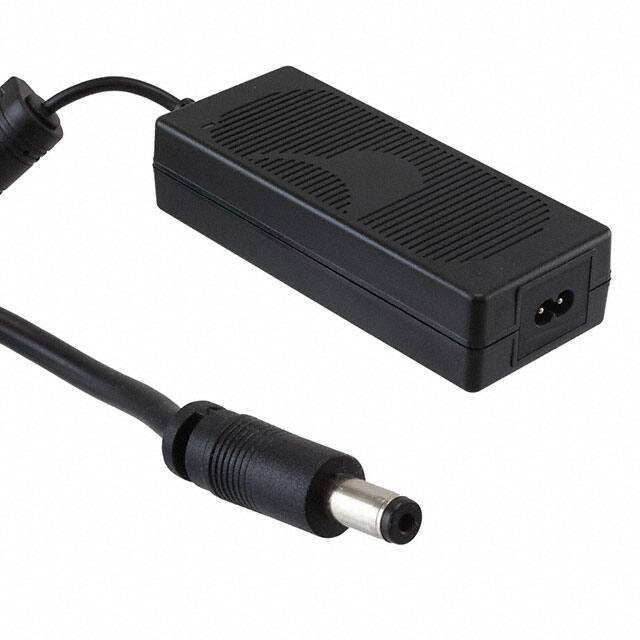

The GlobTek TR9KE7500LCP-IM(R6B) is a regulated switchmode AC-DC power supply designed for desktop applications. It provides a stable 12V output with a maximum current of 7.5A, delivering up to 90W of power.
This adapter operates with a universal input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use. It features an IEC 320-C8 input connector and a 2.5mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output connector with positive center polarization. The unit is designed for desktop use and is Class II insulated.
Compliance includes Level VI efficiency, meeting USA DOE Level VI and Eco-design Directive 2009/125/EC, (EU) 2019/1782 standards. It also holds numerous agency approvals such as cETLus, CB, CCC, CE, RCM, and PSE, indicating suitability for ITE and Medical applications. The operating temperature range is 0°C to 50°C.
The TR9KE7500LCP-IM(R6B) provides a 12V output at 7.5A.
The maximum power output is 90W.
The input voltage range is 100-240V AC, and the frequency range is 50-60 Hz.
The operating temperature range is 0°C to 50°C.
It uses an IEC 320-C8 input connector.
The output connector is a barrel plug with a 2.5mm inner diameter, 5.5mm outer diameter, and 11.0mm length.
Yes, it meets Level VI efficiency standards.
