| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Voltage |

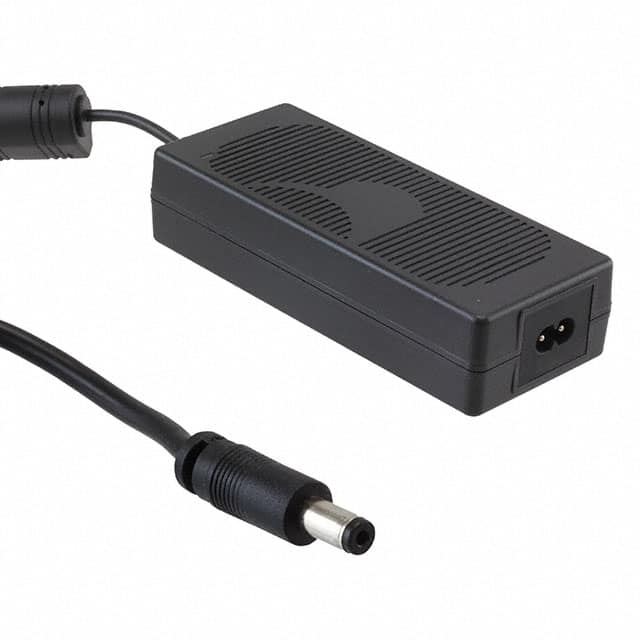

This AC/DC desktop adapter from GlobTek, Inc., model TR9KE7500CCP-IM(R6B), provides a reliable 12V output with a maximum current of 7.5A, totaling 90W of power. It is designed for efficiency, meeting Level VI standards, and is suitable for international use.
The adapter features a positive center polarization and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm). The input connector is a C8 type, with the cord sold separately. Its dimensions are 80.4mm x 43.0mm x 36.9mm, making it a compact desktop form factor (Class II).
Applications for this adapter include household appliances, ITE (Commercial), and medical equipment. It complies with various safety and environmental standards, including RoHS3. The operating temperature range is 0°C to 50°C.
The adapter provides a 12V output voltage and a maximum current of 7.5A.
The adapter has a power rating of 90W.
This adapter meets the Level VI efficiency standard.
Applications include Household Appliances, ITE (Commercial), and Medical.
The operating temperature range is 0°C to 50°C.
It uses a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm.
Yes, it is ROHS3 Compliant.
