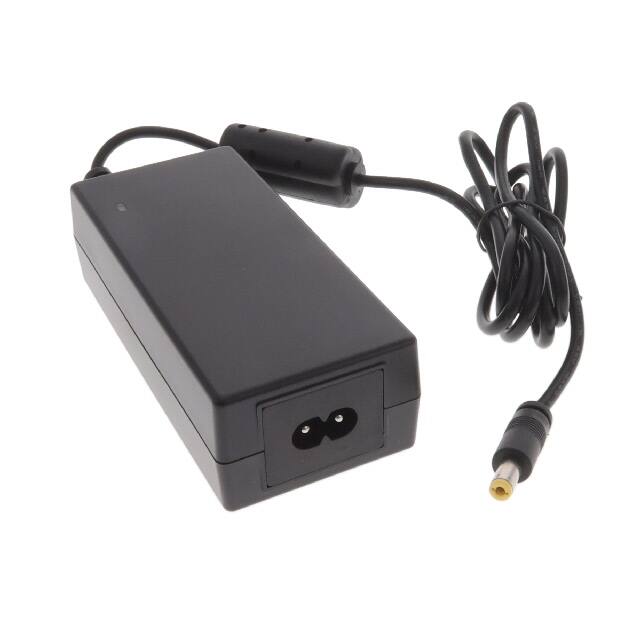

TR9KE5410CCPCIMR6B The GlobTek, Inc. TR9KE5410CCPCIMR6B is a 65W AC/DC desktop adapter providing 12V at 5.41A. It meets Level VI efficiency standards and features an IEC 320-C8 input connector.
Mfr Part #:

TR9KE5410CCPCIMR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. TR9KE5410CCPCIMR6B is a 65W AC/DC desktop adapter providing 12V at 5.41A. It meets Level VI efficiency standards and features an IEC 320-C8 input connector.
Stock on Request

TR9KE5410CCPCIMR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Length
Medical Grade
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Tape & Reel
Voltage
Width
View Similar Products (0)

TR9KE5410CCPCIMR6B Description

Short technical summary and product information.

The GlobTek, Inc. TR9KE5410CCPCIMR6B is an AC/DC desktop adapter designed for ITE (Commercial) and Medical applications. It delivers a stable 12V output with a current rating of 5.41A, providing a total power of 65W.



This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 2 compliance. It operates within a temperature range of -20°C to 40°C and features a low no-load power consumption of 150mW maximum. The input connector is a standard IEC 320-C8, and the output is delivered via a barrel plug with 2.1mm I.D. and 5.5mm O.D.



Designed as a Class II desktop unit, the TR9KE5410CCPCIMR6B has dimensions of 117.5mm x 53.5mm x 34.2mm. It supports international voltage utilization and comes with a 1.20m cord. The adapter is approved by multiple agencies including CE, cETLus, FCC, and PSE, ensuring broad compliance for global use.

TR9KE5410CCPCIMR6B Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Canonical Name: GlobTek, Inc. TR9KE5410CCPCIMR6B AC/DC Desktop Adapter
Subcategory: AC/DC Desktop, Wall Adapters

TR9KE5410CCPCIMR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TR9KE5410CCPCIMR6B Features

  • Provides 12V at 5.41A output.
  • Rated for 65W total power.
  • Achieves Level VI efficiency.
  • Features IEC 320-C8 input connector.
  • Suitable for ITE and Medical use.

TR9KE5410CCPCIMR6B Applications

  • Ideal for commercial equipment.
  • Suitable for medical devices.
  • Powers ITE applications.
  • Used in various international markets.

TR9KE5410CCPCIMR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the TR9KE5410CCPCIMR6B?

The TR9KE5410CCPCIMR6B provides an output voltage of 12V and a current of 5.41A.

What is the power rating of the TR9KE5410CCPCIMR6B adapter?

The adapter has a power rating of 65W.

What are the operating temperature limits for this adapter?

The operating temperature range for the TR9KE5410CCPCIMR6B is -20°C to 40°C.

What type of input connector does the TR9KE5410CCPCIMR6B use?

The adapter uses an IEC 320-C8 input connector.

What are the dimensions of the TR9KE5410CCPCIMR6B?

The dimensions are 117.5mm in length, 53.5mm in width, and 34.2mm in height.

Is the TR9KE5410CCPCIMR6B RoHS compliant?

Yes, the RoHS Status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
