| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

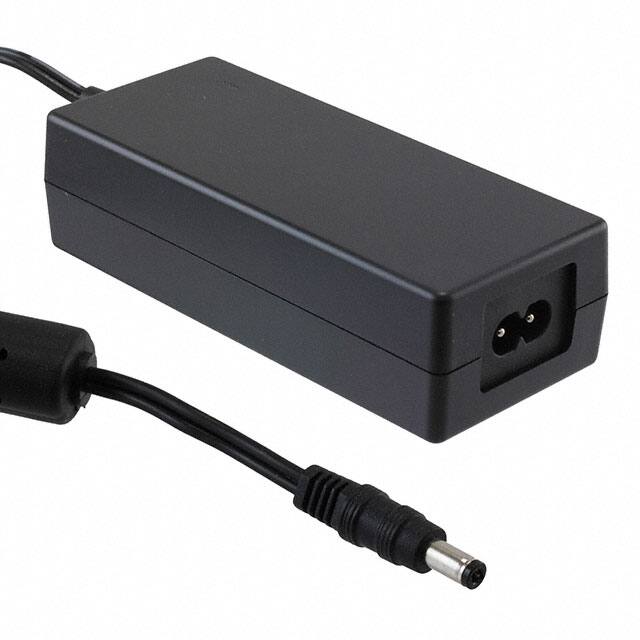

This GlobTek, Inc. TR9KE5000LCP-N(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 12V output at 5A, delivering a total of 60W of power.
The unit operates with an input voltage range of 100-240V AC at 50-60 Hz and features an IEC 60320/C8 input connector. The output is delivered via a standard 2.5mm I.D. x 5.5mm O.D. barrel plug with a cord length of 1.20 meters (47.2 inches). The polarization is center positive.
Designed for efficiency, this power supply meets USA DOE Level VI and EU Eco-design Directive 2009/125/EC standards. It has a low no-load power consumption of 150mW maximum. The operating temperature range is from 0°C to 40°C. Its dimensions are 121.0mm x 52.0mm x 33.0mm, making it a compact desktop form factor (Class II).
This power supply is suitable for various applications, including household appliances and ITE (Commercial) equipment. It holds numerous agency approvals, including CB, CCC, CE, cULus, EAC, FCC, GS, LPS, RCM, PSE, UKRSepro, and VCCI.
The input voltage range is 100-240 VAC at 50-60 Hz.
The output voltage is 12.0V and the output current is 5.0A.
The output power is 60 watts.
It meets Level VI efficiency and has a maximum no-load power consumption of 150mW.
It uses a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, center positive.
The operating temperature range is 0°C to 40°C.
The dimensions are 121.0mm x 52.0mm x 33.0mm (4.76" x 2.05" x 1.30").
