| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

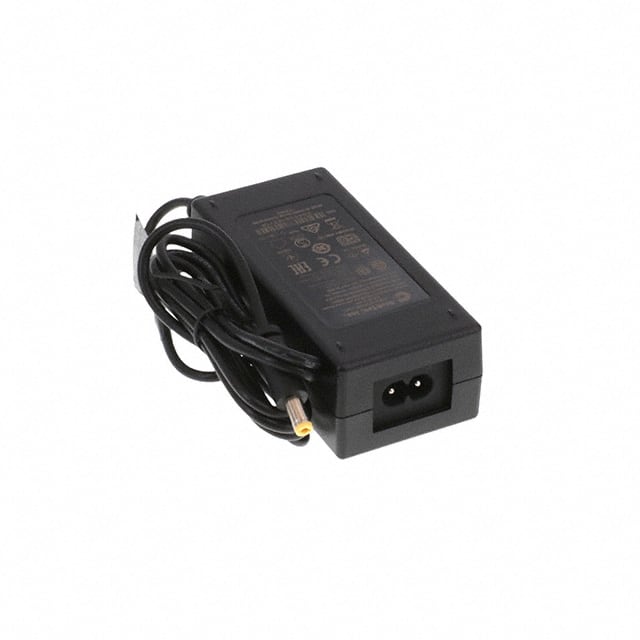

The GlobTek TR9KE3000CCPCIM(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 12V output at 3A, delivering a total of 36W of power.
This adapter meets USA DoE Level VI and Eco-Design Directive 2009/125/EC efficiency requirements, ensuring energy savings. It features an input rating of 100-240V~ at 50-60 Hz, with an IEC 60320/C8 input connector. The output is delivered via a 1.5-meter cord with a 5.5*2.1*12mm female barrel connector, featuring center positive polarization.
Designed for versatility, the TR9KE3000CCPCIM(R6B) is suitable for household appliances, ITE commercial equipment, and medical applications. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 75mW maximum. The unit is housed in a black GlobTek case and conforms to numerous international safety and compliance standards including CB, CE, ETL, and LPS.
The TR9KE3000CCPCIM(R6B) has an output voltage of 12.0V and an output current of 3.0A.
This adapter has a power rating of 36W.
The adapter meets Level VI efficiency standards.
The operating temperature range is -20°C to 40°C.
It uses an IEC 60320/C8 input connector.
The dimensions are 142.0mm x 62.0mm x 60.0mm.
It is suitable for Household Appliances, ITE (Commercial), and Medical applications.
