| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

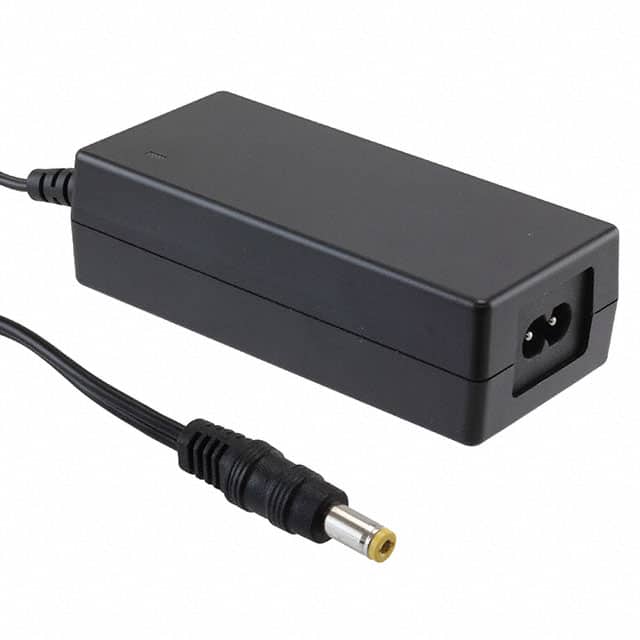

The GlobTek, Inc. TR9KE3000CCP-N(R6B) is an AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 12V DC output at a maximum current of 3A, delivering a total power of 36W. This adapter meets the stringent Level VI efficiency requirements, ensuring optimal energy usage.
The unit features a compact desktop form factor (Class II) with dimensions of 111.0mm x 52.0mm x 32.3mm. It utilizes an IEC 320-C8 input connector and offers a convenient barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. The operating temperature range is from 0°C to 40°C, making it suitable for various environments. The adapter is designed for international use and complies with standard number 60950-1.
This adapter supports a wide input voltage range of 100-240 VAC, making it versatile for global deployment. It also boasts a low no-load power consumption of 75mW (Max). The approval agencies include CB, CE, cULus, EAC, FCC, LPS, PSE, UKRSepro, and VCCI, indicating broad regulatory compliance.
The adapter provides an output voltage of 12VDC at a maximum current of 3A.
The adapter has a power rating of 36W.
This adapter meets the Level VI efficiency standard.
The adapter can operate within a temperature range of 0°C to 40°C.
It features an IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm).
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
