| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

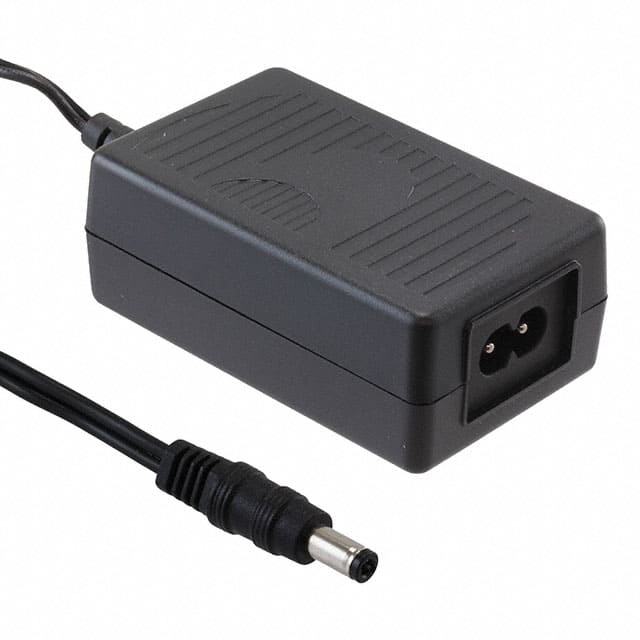

This GlobTek, Inc. TR9KE2000LCP-N(R6B) is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 2A, providing a total power of 24W. The adapter meets Level VI efficiency standards, ensuring energy savings.
Key features include an IEC 320-C8 input connector and a barrel plug output with a 2.5mm I.D. and 5.5mm O.D., with positive center polarization. The unit operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum. Its compact dimensions are 80.6mm x 50.0mm x 31.0mm.
The adapter is compliant with various international standards, including CB, CE, cULus, EAC, LPS, PSE, RCM, S-Mark, SIQ, UKRSepro, and VCCI, and adheres to standard 60950-1. It is RoHS3 compliant and has an MSL of 1.
The TR9KE2000LCP-N(R6B) adapter has an output voltage of 12V and a maximum output current of 2A.
The power rating of the TR9KE2000LCP-N(R6B) is 24W.
This AC/DC adapter has an efficiency rating of Level VI.
The operating temperature range for the TR9KE2000LCP-N(R6B) is 0°C to 40°C.
The TR9KE2000LCP-N(R6B) uses an IEC 320-C8 input connector.
The output connector is a barrel plug with a 2.5mm I.D. x 5.5mm O.D. and positive center polarization.
Yes, the TR9KE2000LCP-N(R6B) is RoHS3 compliant.
