| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

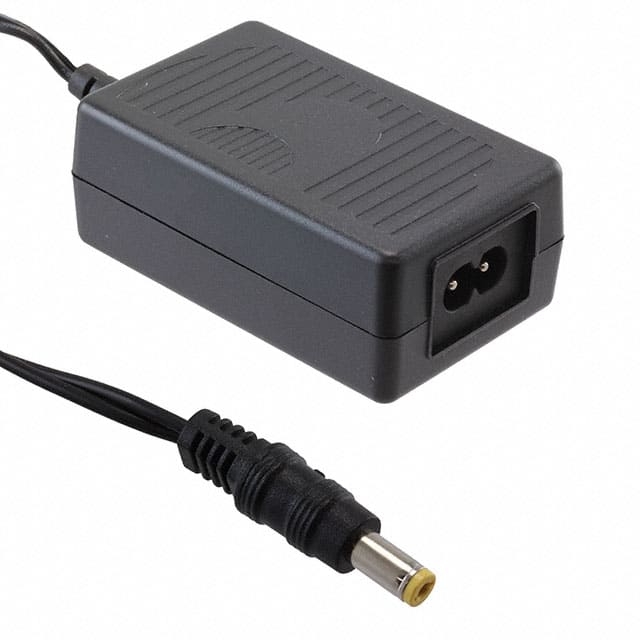

The GlobTek TR9KE2000CCP-N(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It operates with an input voltage range of 100-240V AC at 50-60 Hz, featuring an IEC 60320/C8 input connector.
This adapter delivers a stable 12.0V output at 2.0A, providing a total power of 24W. It is designed for ITE (Commercial) applications and meets USA DOE Level VI efficiency standards, as well as Eco-design Directive 2009/125/EC and (EU) 2019/1782.
The unit has a compact form factor with dimensions of 80.6mm x 50.0mm x 31.0mm. The output is configured with a 1530 mm cord ending in a female barrel connector measuring 5.5mm outer diameter and 2.1mm inner diameter, with a length of 11mm. It features center positive polarization.
Key approvals include cULus, CE, EAC, PSE, RCM, UKCA, and compliance with IEC 62368-1 and IEC 60950-1 standards. The operating temperature range is 0°C to 40°C. It also boasts a low no-load power consumption of 75mW.
The TR9KE2000CCP-N(R6B) provides an output voltage of 12V at a current of 2A.
This adapter has a power rating of 24W.
The adapter meets USA DOE Level VI efficiency standards.
It uses an IEC 320-C8 input connector.
The dimensions are 80.6mm in length, 50.0mm in width, and 31.0mm in height.
The operating temperature range is from 0°C to 40°C.
Yes, it is RoHS3 Compliant.
