| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

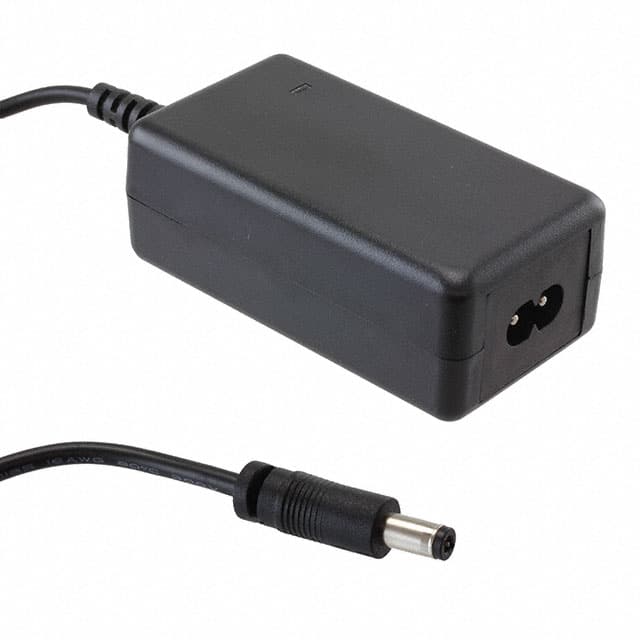

The GlobTek, Inc. TR9KE1500LCP-IMR6B is an AC/DC desktop adapter designed for various applications including household appliances, ITE (Commercial), and Medical.
This adapter provides a stable 12V output at 1.5A, delivering a total power of 18W. It meets Level VI efficiency standards and includes essential safety features such as short circuit and over voltage protection. The input voltage range is versatile, supporting 100-240 VAC, making it suitable for international use.
The unit is housed in a compact desktop (Class II) form factor with dimensions of 87.0mm x 47.0mm x 32.0mm. It features an IEC 320-C8 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The cord length is 47.2 inches (1.20m).
Compliance is supported by multiple agencies including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI, adhering to standards such as 60335-1, 60601-1-11, and 62368-1.
The adapter provides a 12V output at 1.5A.
This adapter has a power rating of 18W.
The adapter meets Level VI efficiency standards.
The adapter can operate between -20°C and 40°C.
It uses an IEC 320-C8 input connector.
The adapter measures 87.0mm in length, 47.0mm in width, and 32.0mm in height.
It includes short circuit and over voltage protection, operates at low temperatures, and is designed to prevent fire hazards.
