| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

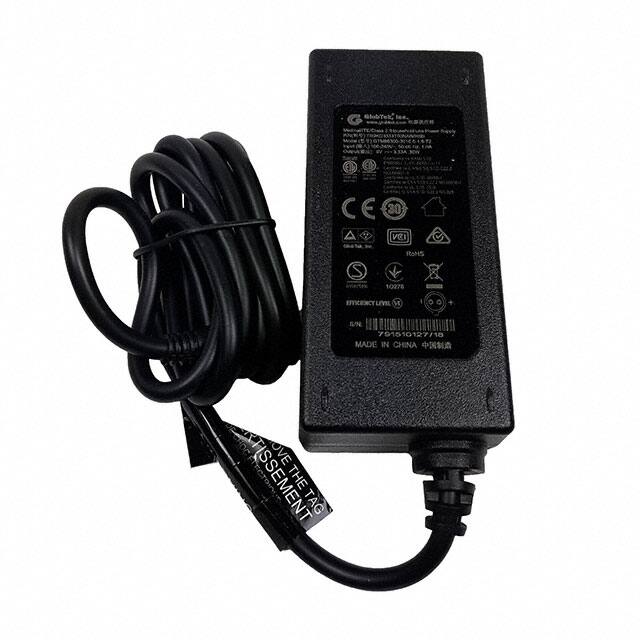

The GlobTek, Inc. TR9KD3333T00NAIMR6B is a versatile 30W AC/DC desktop adapter designed for various applications including household appliances, ITE (Commercial), and Medical.
This adapter provides a stable 9V output with a current rating of 3.33A. It features a Level VI efficiency, ensuring optimal power usage. The input connector is an IEC 320-C8, and it supports international voltage regions. The adapter's dimensions are 105.0mm x 50.0mm x 35.5mm.
Compliance is a key feature, with approvals from agencies such as CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI. It meets various standard numbers including 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1.
The adapter is designed as a Desktop (Class II) form factor and includes a cord length of 47.2 inches (1.20m). The no-load power consumption is a maximum of 75mW.
The output is 9V at 3.33A, providing 30W of power.
It uses an IEC 320-C8 input connector.
A barrel plug kit with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm tips.
The operating temperature range is -20°C to 40°C.
It meets Level VI efficiency.
It measures 105.0mm x 50.0mm x 35.5mm.
