| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

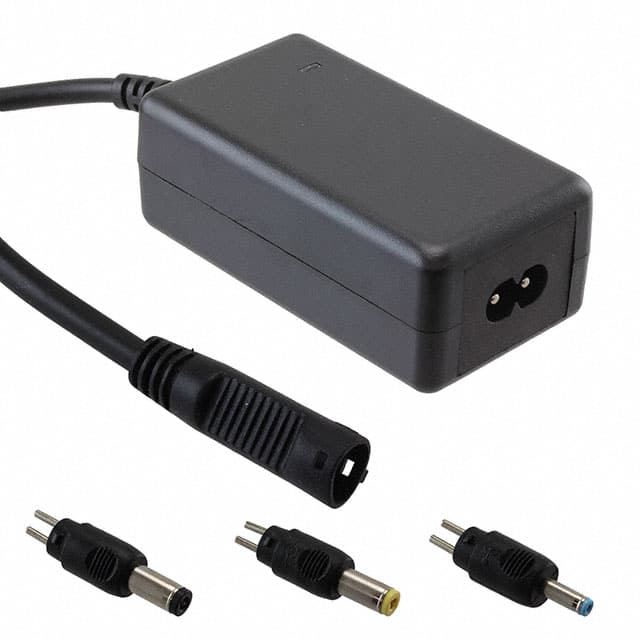

This GlobTek, Inc. TR9KD2000T00-IMR6B is an external AC/DC desktop power adapter with an 18W power rating. It provides a stable 9V output at a maximum current of 2A. The adapter is designed for efficiency, meeting Level VI standards, and operates within a wide input voltage range of 90-264 VAC.
Designed for versatility, this power supply is suitable for ITE (Commercial) and Medical applications. It features an IEC 320-C8 input connector and comes with a cord sold separately. The output is delivered via a barrel plug kit, compatible with various I.D. sizes from 1.3mm to 2.5mm. Its compact dimensions are 87.0mm x 47.0mm x 32.0mm, making it suitable for desktop use.
The unit operates within an ambient temperature range of -20°C to 40°C. It holds numerous international approvals including CCC, CE, cETLus, cULus, EAC, KC, NOM, PSE, RCM, S-Mark, UkrSEPRO, and VCCI, ensuring compliance across various regions. The input type specifies a cord sold separately, and the form factor is a Desktop Class I/II design.
The TR9KD2000T00-IMR6B adapter provides a 9V output voltage at a maximum current of 2A.
The power rating of the TR9KD2000T00-IMR6B power supply is 18W.
The operating temperature range for this GlobTek adapter is -20°C to 40°C.
The dimensions of the TR9KD2000T00-IMR6B are 87.0mm x 47.0mm x 32.0mm.
The TR9KD2000T00-IMR6B meets Level VI efficiency standards.
