| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

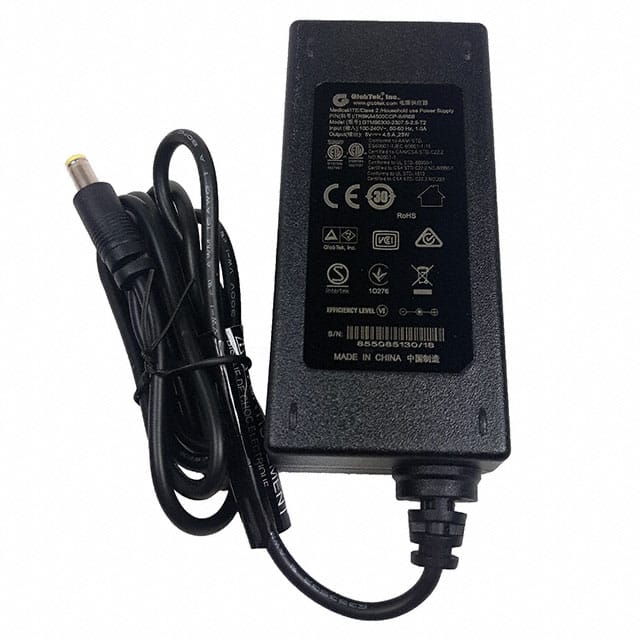

This GlobTek TR9KA4500LCP-IMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It delivers a stable 5.0V output at 4.5A, providing a total power of 23W. The adapter meets USA DoE Level VI efficiency standards and is suitable for medical, ICT, ITE, and household applications.
The unit features an IEC 60320/C8 input connector and a 5.5mm x 2.5mm barrel plug output with positive center polarization. Its compact dimensions are 105.0mm x 50.0mm x 35.5mm, making it suitable for various installations. The operating temperature range is -20°C to 40°C, and it has a low no-load power consumption of 75mW maximum.
Compliance is supported by numerous agency approvals including CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, adhering to standards such as IEC 62368-1 and IEC 60601-1. The adapter is designed for international use and is RoHS3 compliant.
The TR9KA4500LCP-IMR6B provides an output voltage of 5.0V at 4.5A.
This adapter has an output power rating of 23W.
The adapter meets the Level VI efficiency standard.
The operating temperature range for this power supply is -20°C to 40°C.
It uses an IEC 60320/C8 input connector.
The output connector is a barrel plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
Yes, the TR9KA4500LCP-IMR6B is RoHS3 Compliant.
