| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

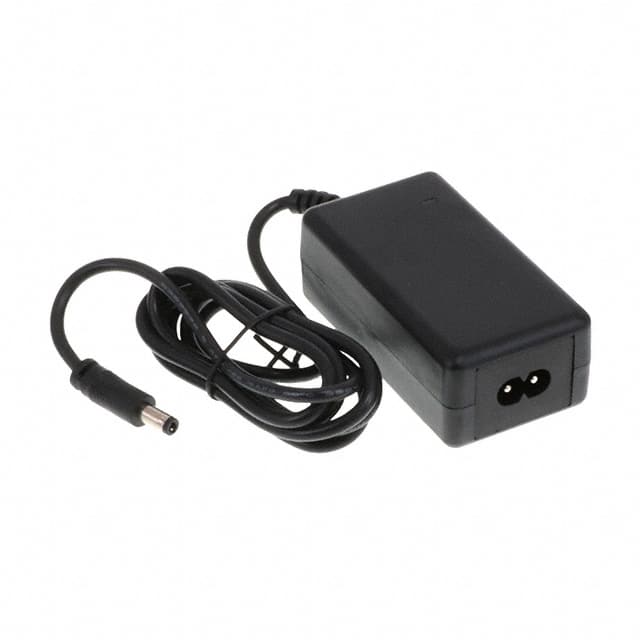

The GlobTek, Inc. TR9KA3600LCP-IMR6B is a versatile AC/DC desktop adapter designed for various applications including household appliances, ITE commercial, and medical equipment. It delivers a stable 5V output at 3.6A, providing a total power of 18W.
This adapter features an IEC 320-C8 input connector and a standard barrel plug output with positive center polarization. Its compact dimensions are 87.0mm x 47.0mm x 32.0mm, making it suitable for space-constrained designs. The adapter operates within a temperature range of -20°C to 40°C and meets Level VI efficiency standards.
Compliance is ensured with numerous agency approvals including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI. It also adheres to RoHS3 standards and has an MSL of 1.
The adapter provides a 5V output at 3.6A.
The adapter has a power rating of 18W.
It uses an IEC 320-C8 input connector.
The dimensions are 87.0mm in length, 47.0mm in width, and 32.0mm in height.
The adapter can operate between -20°C and 40°C.
Yes, it is RoHS3 compliant.
The Moisture Sensitivity Level is 1.
