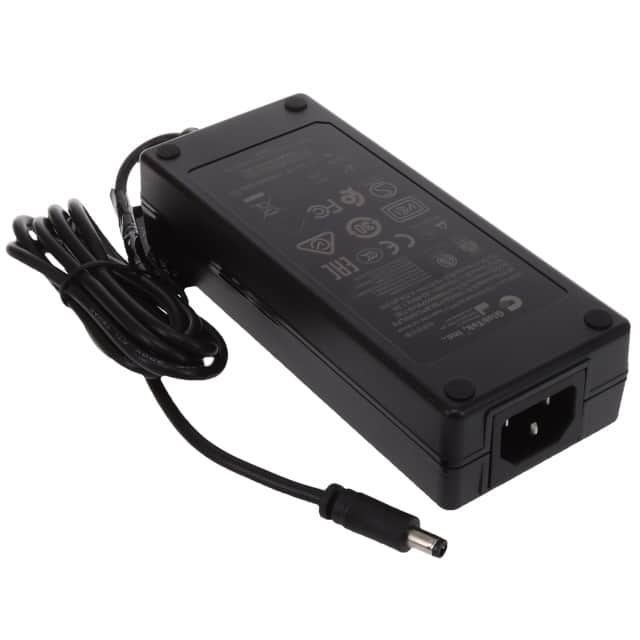

TR9CZ4730L9PCIMR6LPS The GlobTek TR9CZ4730L9PCIMR6LPS is a 90W AC/DC desktop power supply providing a 19V output at 4.73A. It meets Level VI efficiency standards.
Mfr Part #:

TR9CZ4730L9PCIMR6LPS

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek TR9CZ4730L9PCIMR6LPS is a 90W AC/DC desktop power supply providing a 19V output at 4.73A. It meets Level VI efficiency standards.
Stock on Request

TR9CZ4730L9PCIMR6LPS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

TR9CZ4730L9PCIMR6LPS Description

Short technical summary and product information.

The GlobTek TR9CZ4730L9PCIMR6LPS is a regulated switchmode AC-DC power supply designed for desktop or external use. It delivers a continuous output power of 90W with a voltage of 19.0V and a current of 4.73A.



This power supply features an input rating of 100-240V~ at 50-60Hz and utilizes an IEC 60320/C14 input connector. The output is delivered via a 5.5mm x 2.5mm x 9.5mm female barrel connector with a center positive polarization. The unit operates within a temperature range of 0°C to 50°C and has a low no-load power consumption of 150mW maximum.



Designed for various applications including Household Appliances, ITE (Commercial), and Medical, the TR9CZ4730L9PCIMR6LPS complies with numerous safety standards such as UL 1310, 60335-1, 60601-1-11, 60950-1, 61347-1, and 62368-1. It holds approvals from agencies including CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI. The device is classified as a Desktop (Class I) form factor and meets Efficiency Level VI and CoC Tier 2 standards.



The dimensions of the power supply are 149.3mm x 62.8mm x 34.0mm. The output cord length is 1.20 meters (47.2 inches). The input cord is sold separately.

TR9CZ4730L9PCIMR6LPS Quick Information

Product Type: AC DC Desktop, Wall Adapter
Canonical Name: GlobTek, Inc. TR9CZ4730L9PCIMR6LPS AC/DC Desktop Power Supply
Subcategory: Desktop/External

TR9CZ4730L9PCIMR6LPS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TR9CZ4730L9PCIMR6LPS Features

  • 90W AC/DC desktop power supply.
  • 19V output at 4.73A current.
  • Universal input 100-240VAC.
  • Level VI efficiency rating.
  • IEC C14 input connector.

TR9CZ4730L9PCIMR6LPS Applications

  • Powers laptops and portable devices.
  • Suitable for medical equipment.
  • Used in industrial control systems.
  • Ideal for IT and telecommunications.

TR9CZ4730L9PCIMR6LPS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TR9CZ4730L9PCIMR6LPS?

100-240 VAC at 50/60 Hz.

What output voltage does this adapter provide?

19 V DC.

What is the output power rating?

90 W.

What is the operating temperature range?

0°C to 50°C.

What efficiency level does this adapter meet?

Level VI.

What output connector type does the adapter have?

Female barrel 5.5mm outer diameter, 2.5mm inner diameter, 9.5mm length, center positive.

What safety standards does this adapter comply with?

UL 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61347-1, 62368-1.
