| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

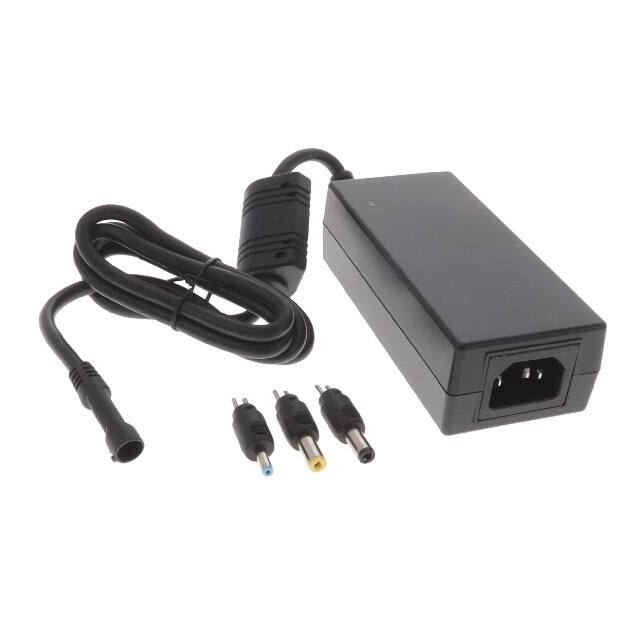

The GlobTek TR9CZ3250T00CIMR6B is a versatile AC/DC desktop power adapter with a power output of 65W. It delivers a stable 20V output at a maximum current of 3.25A. This adapter is designed for international use, featuring an IEC 320-C14 input connector and a cord length of 47.2 inches (1.20m).
Designed for both ITE (Commercial) and Medical applications, the TR9CZ3250T00CIMR6B meets stringent safety and performance standards, including 60601-1-11, 60601-1-2, and 62368-1. It boasts Level VI efficiency and low no-load power consumption of 150mW maximum. The adapter operates within a temperature range of -20°C to 40°C.
Its mechanical specifications include dimensions of 117.5mm x 53.5mm x 34.2mm. The output is configurable via a barrel plug kit supporting multiple sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) with positive tip and negative sleeve polarization. The unit is classified as Desktop (Class I) and is RoHS3 compliant.
The TR9CZ3250T00CIMR6B has an output voltage of 20V and a maximum current of 3.25A.
The adapter has a power rating of 65W.
The adapter operates within a temperature range of -20°C to 40°C.
It uses an IEC 320-C14 input connector.
The dimensions are 117.5mm in length, 53.5mm in width, and 34.2mm in height.
Yes, the RoHS status is RoHS3 Compliant.
