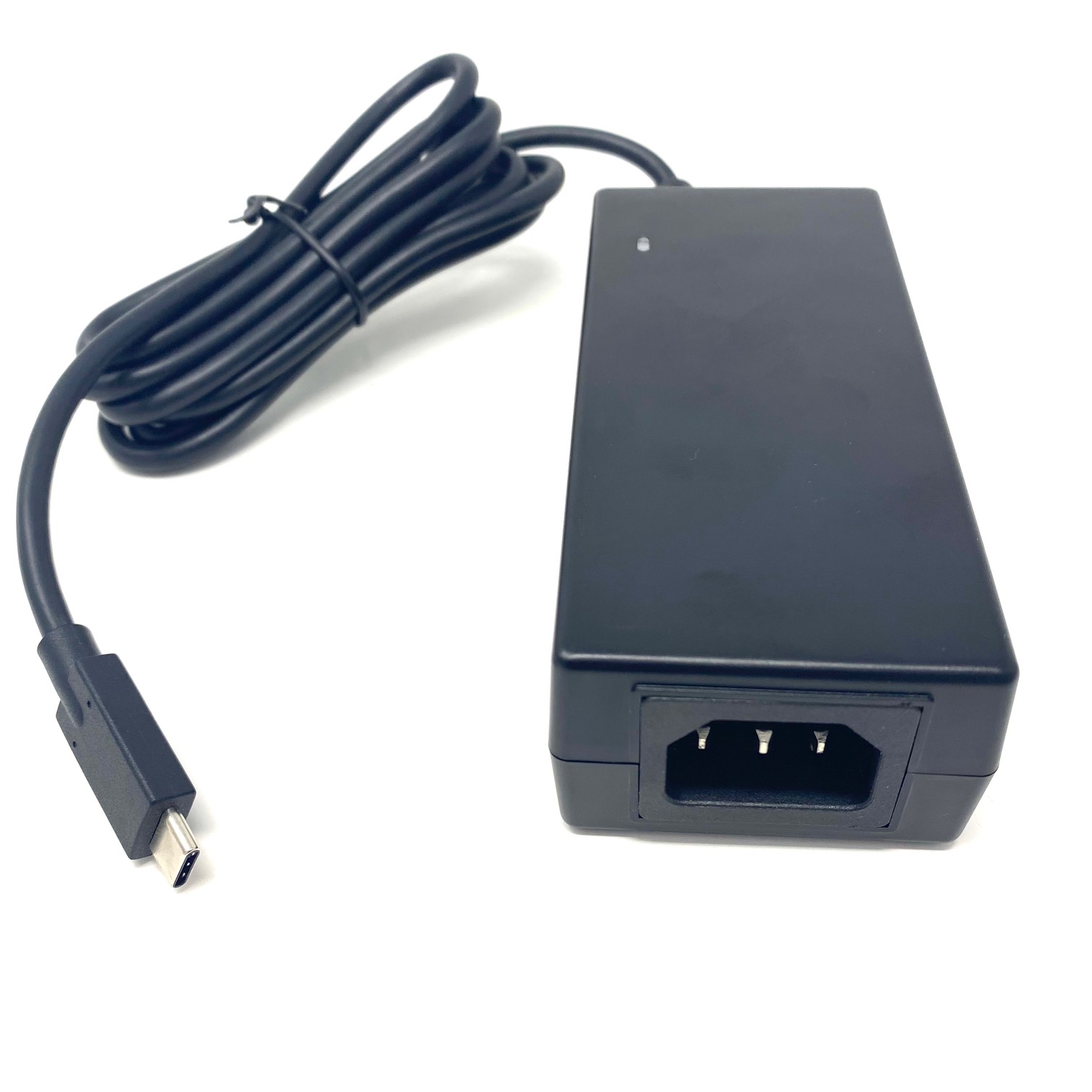

The GlobTek TR9CZ3000USBCPPS(R6B) is a versatile 60W AC/DC desktop power adapter suitable for both ITE (Commercial) and Medical applications. It accepts a wide input voltage range of 100-240V AC at 50-60Hz, ensuring global compatibility.
The adapter provides multiple output voltage options, including fixed voltages of 5V, 9V, 15V, and 20V, as well as Programmable Power Supply (PPS) ranges from 3.6V up to 20V. The maximum output current is 4.6A, supporting various power demands. It features a standard USB Type-C connector for output.
Designed for efficiency, this adapter meets USA DOE Level VI and Eco-design Directive 2009/125/EC standards. It operates within a temperature range of -10°C to 40°C and has a low no-load power consumption of 75mW. The unit is housed in a Class I desktop form factor and includes numerous safety approvals such as CB, CCC, CE, cETLus, and ETL.
Key specifications include a 1.5-meter cord length and dimensions of 117.5 x 53.5 x 34.2 mm. The TR9CZ3000USBCPPS(R6B) is RoHS3 compliant and has an MSL of Level 1.
The TR9CZ3000USBCPPS(R6B) has a maximum output power of 60W.
This adapter supports a universal input voltage range of 100-240V AC.
The output connector is a USB Type-C.
The operating temperature range is -10°C to 40°C.
It meets the USA DOE Level VI efficiency standard.
The RoHS status is listed as RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
