| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

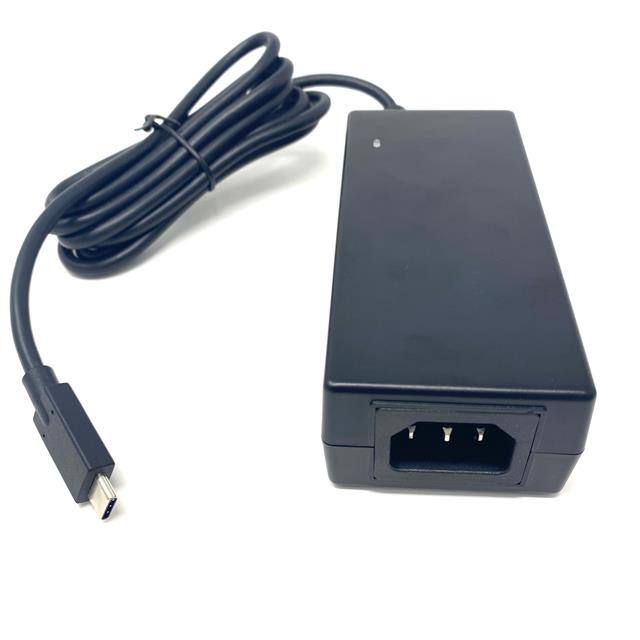

The GlobTek TR9CZ3000USBCG2R6BF2 is a versatile 60W AC/DC desktop power adapter designed for ITE and Medical applications. It accepts a wide input voltage range of 100-240V AC at 50-60Hz, making it suitable for international use.
The adapter provides multiple output voltage options including 5V, 5.8V, 9V, 12V, 15V, 15.1V, and 20V, with corresponding currents up to 4.6A. The output is delivered via a USB Type-C connector, supporting Power Delivery (PD) functionality.
With an efficiency rating of Level VI and CoC Tier 2, this adapter minimizes energy consumption. It operates within a temperature range of -10°C to 50°C and has a low no-load power consumption of 75mW maximum. The compact desktop form factor measures 117.5mm x 53.5mm x 34.2mm.
Key approvals include CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, ensuring compliance with various international standards.
The maximum output power is 60W.
The adapter accepts an input voltage range of 100-240V AC at 50-60Hz.
It supports output voltages of 5V, 5.8V, 9V, 12V, 15V, 15.1V, and 20V.
The output connector is USB Type-C, supporting Power Delivery (PD).
The adapter has an efficiency rating of Level VI.
The operating temperature range is -10°C to 50°C.
