| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

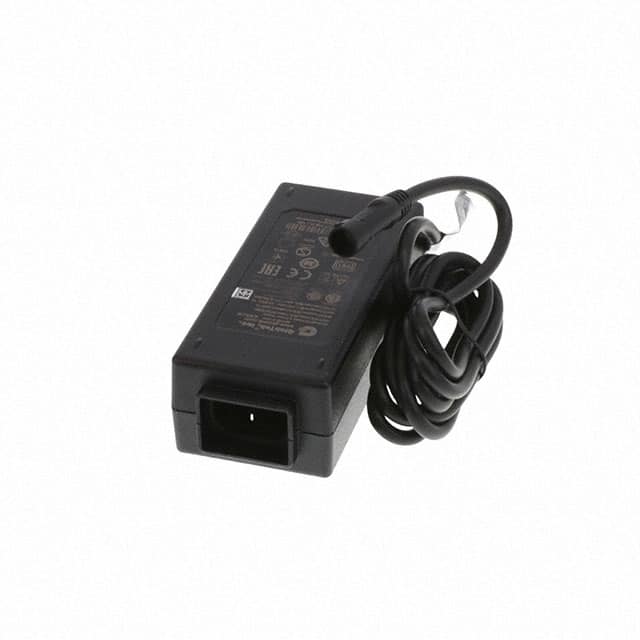

This GlobTek, Inc. AC/DC desktop power supply, model TR9CX750T00-IMR6B, delivers 36W of power with a 48V output at 0.75A. It is designed for international use, accepting an input voltage range of 100-240V AC at 50-60 Hz.
The unit features an IEC 320-C14 input connector and comes with a T-plug system that includes 5.5x2.5mm, 5.5x2.1mm, and 3.5x1.3mm output plugs. The power supply operates within a temperature range of -10°C to 40°C and meets Efficiency Level VI standards.
With applications in household appliances, commercial ITE, and medical equipment, this desktop adapter is built for reliability. It has dimensions of 113.3mm x 50.0mm x 35.5mm and a cord length of 1.50 meters. Approvals include CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI.
100-240 VAC at 50-60 Hz.
48 VDC at 0.75 A, 36W.
Level VI, CoC Tier 2.
-10°C to 40°C.
113.3mm x 50.0mm x 35.5mm.
CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI.
Household appliances, ITE (commercial), and medical.
