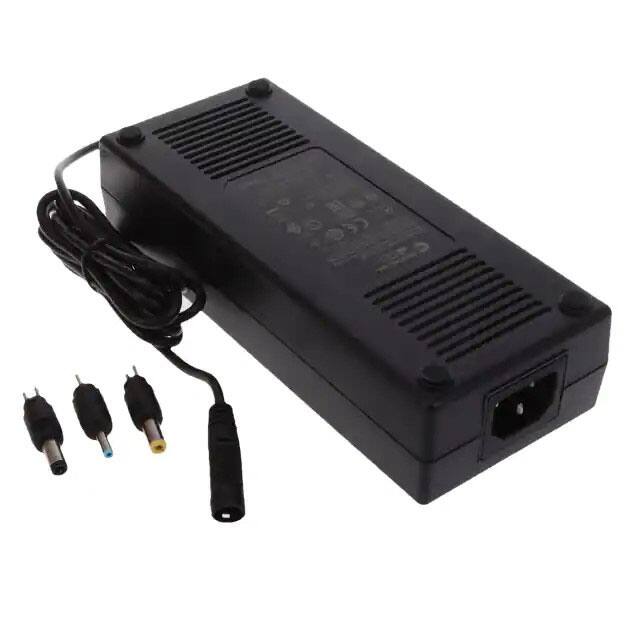

The GlobTek, Inc. TR9CX3333T00-IM(R6B) is a high-power AC/DC desktop adapter designed for various applications including household appliances, ITE commercial, and medical equipment. This unit delivers a stable 54V output at 3.33A, providing a total of 180W of power.
It features an IEC 320-C14 input connector and supports international voltage utilization. The adapter comes with a T00 changeable output plug system, allowing for either center positive or center negative polarity. The output connector is a barrel plug kit compatible with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm sizes. The T00 tip is designed for a one-time attachment to the cord.
With an efficiency rating of Level VI and CoC Tier 2, the adapter minimizes energy waste. It operates within a temperature range of -10°C to 40°C and has a low no-load power consumption of 150mW maximum. The adapter complies with numerous safety standards, including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1, and holds approvals from agencies such as CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, and VCCI.
The dimensions of the adapter are 176.5mm x 74.0mm x 40.0mm (6.95" L x 2.91" W x 1.58" H). It is classified as Desktop (Class I) and is suitable for international use.
54V.
3.33A.
180W.
IEC 320-C14.
-10°C to 40°C.
Level VI, CoC Tier 2.
Desktop (Class I) with dimensions 176.5mm x 74.0mm x 40.0mm.
