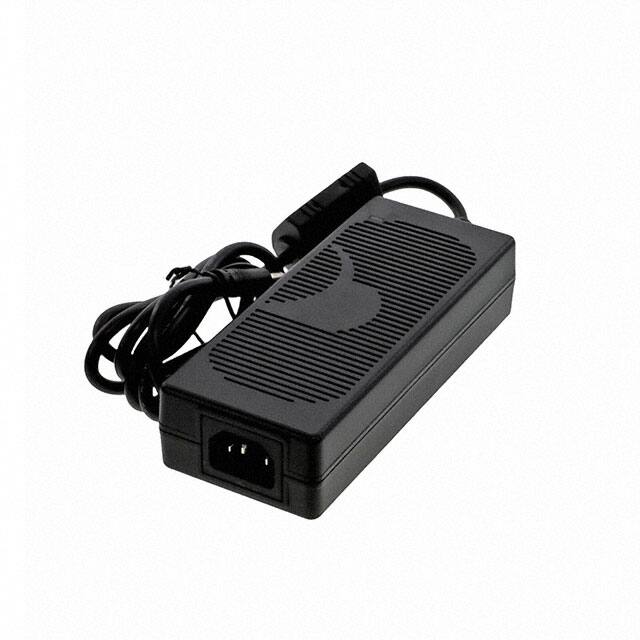

The GlobTek, Inc. TR9CX2500T00-IM(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a continuous output power of 120W with a stable 48.0V at 2.5A.
This power adapter meets stringent efficiency requirements, complying with USA DOE Level VI and Eco-design Directive 2009/125/EC, (EU) 2019/1782 standards. It operates with an input voltage range of 100-240V~ at 50-60 Hz and features an IEC 60320/C14 input connector. The output is configurable with a T-plug system, including common plug sizes (5.5x2.5mm, 5.5x2.1mm, 3.5x1.3mm), and all plugs are medical grade, locking, and polarized.
Designed for versatility, the TR9CX2500T00-IM(R6B) is suitable for applications in Household Appliances, ITE (Commercial), and Medical fields. It has a compact desktop form factor (Class I) with dimensions of 149.3mm x 62.8mm x 34.0mm and an operating temperature range of -20°C to 40°C. The unit has a low no-load power consumption of 150mW (Max).
The output voltage is 48.0V.
The maximum output current is 2.5A.
The total power output is 120W.
It meets USA DOE Level VI efficiency standards.
The dimensions are 149.3mm x 62.8mm x 34.0mm.
It uses an IEC 60320/C14 input connector.
The operating temperature range is -20°C to 40°C.
