| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

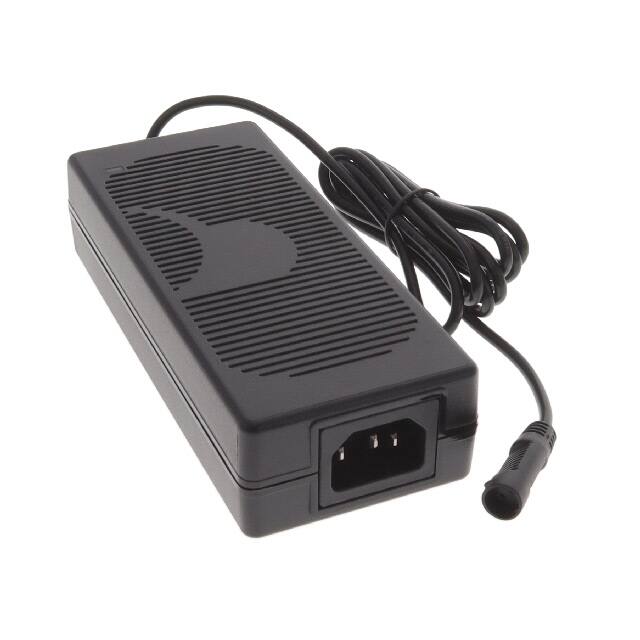

This AC/DC desktop adapter from GlobTek, Inc., model TR9CX2222T00-IM(R6B), provides a 54VDC output with a maximum power of 120W and a current rating of 2.22A. It is designed for international use and meets Level VI efficiency standards, with a low no-load power consumption of 150mW.
The adapter features an IEC 320-C14 input connector and comes with a cord length of 1.50m. The output connector is a versatile barrel plug kit supporting multiple sizes, including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm. The polarization is configurable as either center positive or center negative, utilizing GlobTek's T00 changeable output plug system.
With a compact desktop form factor (Class I), the adapter operates within a temperature range of -10°C to 40°C. It is approved by multiple agencies including CE, cETLus, and PSE, and complies with various standards such as IEC 60335-1 and IEC 60601-1-11. Applications include household appliances, ITE commercial equipment, and medical devices.
The input voltage range is 100-240 VAC.
The operating temperature range is -10°C to 40°C.
It provides 54 VDC at 2.22A.
The power rating is 120W.
It meets Level VI and CoC Tier 2 efficiency standards.
It has approvals from BSMI, CB, CCC, CE, cETLus, EAC, ETL, PSE, S-Mark, UKRSepro, and VCCI.
It is suited for household appliances, ITE (commercial), and medical applications.
