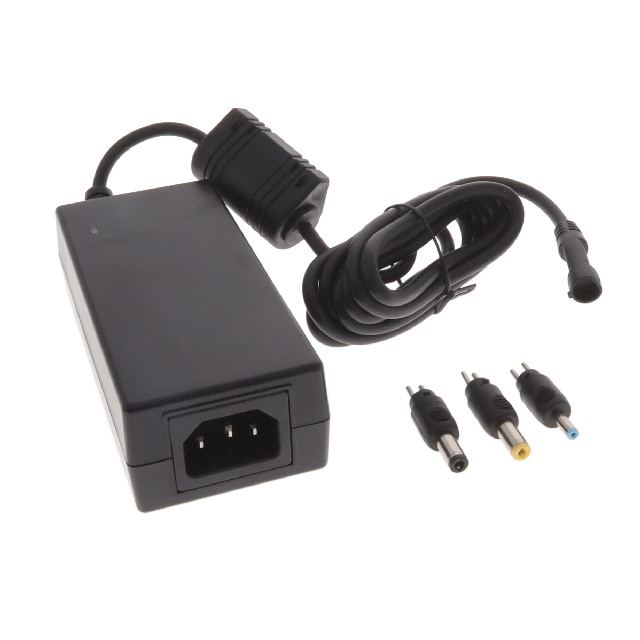

The GlobTek, Inc. TR9CX1350T00CIMR6B is an AC/DC external desktop adapter designed for commercial ITE and medical applications. It delivers a stable 48V output at a maximum current of 1.35A, providing a total power of 65W. The adapter operates with an input voltage range of 90-264 VAC and meets Level VI efficiency standards, with a low no-load power consumption of 150mW maximum.
This adapter features an IEC 320-C14 input connector and a barrel plug output kit compatible with multiple sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm). Its dimensions are 117.5mm x 53.5mm x 34.2mm. The operating temperature range is -20°C to 40°C. It complies with international standards including 60601-1-11, 60601-1-2, and 62368-1, and has received numerous agency approvals such as CB, CE, cETLus, and FCC.
The unit is classified as Desktop (Class I) and utilizes a negative center polarization. The input type is a cord, which is sold separately. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is REACH Unaffected.
The output voltage is 48V.
The maximum output current is 1.35A.
The power rating is 65W.
The input voltage range is 90-264 VAC.
It meets Level VI and CoC Tier 2 efficiency standards.
The dimensions are 117.5mm x 53.5mm x 34.2mm.
It uses an IEC 320-C14 input connector.
