| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

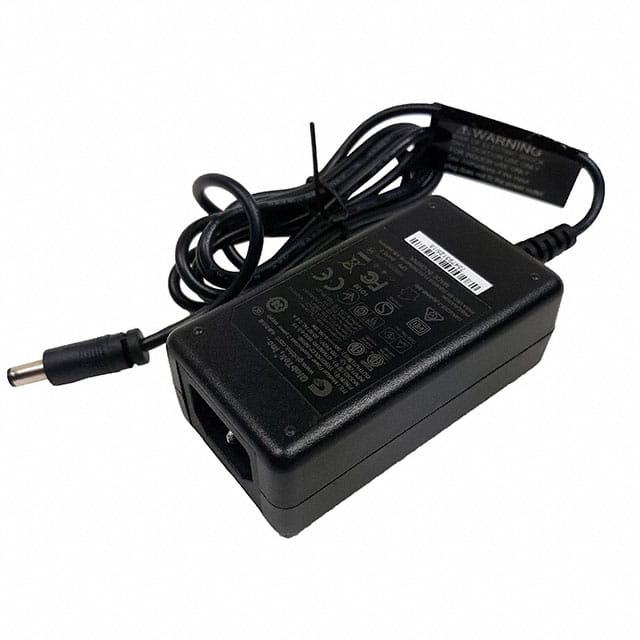

The GlobTek, Inc. TR9CI750LCP-IMR6B is a regulated switchmode AC-DC power supply designed for desktop use. It provides an output rating of 24.0V at 0.75A, delivering 18.00W of power.
This adapter operates with an input range of 100-240VAC at 50-60 Hz and features an IEC 60320/C14 input connector. It is designed for international use and meets Level VI efficiency standards, ensuring energy conservation. The output connector is a standard barrel plug with a 2.5mm inner diameter and 5.5mm outer diameter, featuring positive center polarization.
With a compact desktop form factor (Class I), the TR9CI750LCP-IMR6B is suitable for various applications including Household Appliances, ITE (Commercial), and Medical equipment. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 75mW maximum.
Compliance is assured with numerous agency approvals including BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI. The unit is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
The TR9CI750LCP-IMR6B provides an output of 24.0V at 0.75A.
This adapter has a power rating of 18.00W.
The adapter supports an input voltage range of 100-240VAC.
The adapter meets Level VI efficiency standards.
The dimensions are 87.0mm x 47.0mm x 32.0mm.
The operating temperature range is -20°C to 40°C.
It uses an IEC 60320/C14 input connector.
