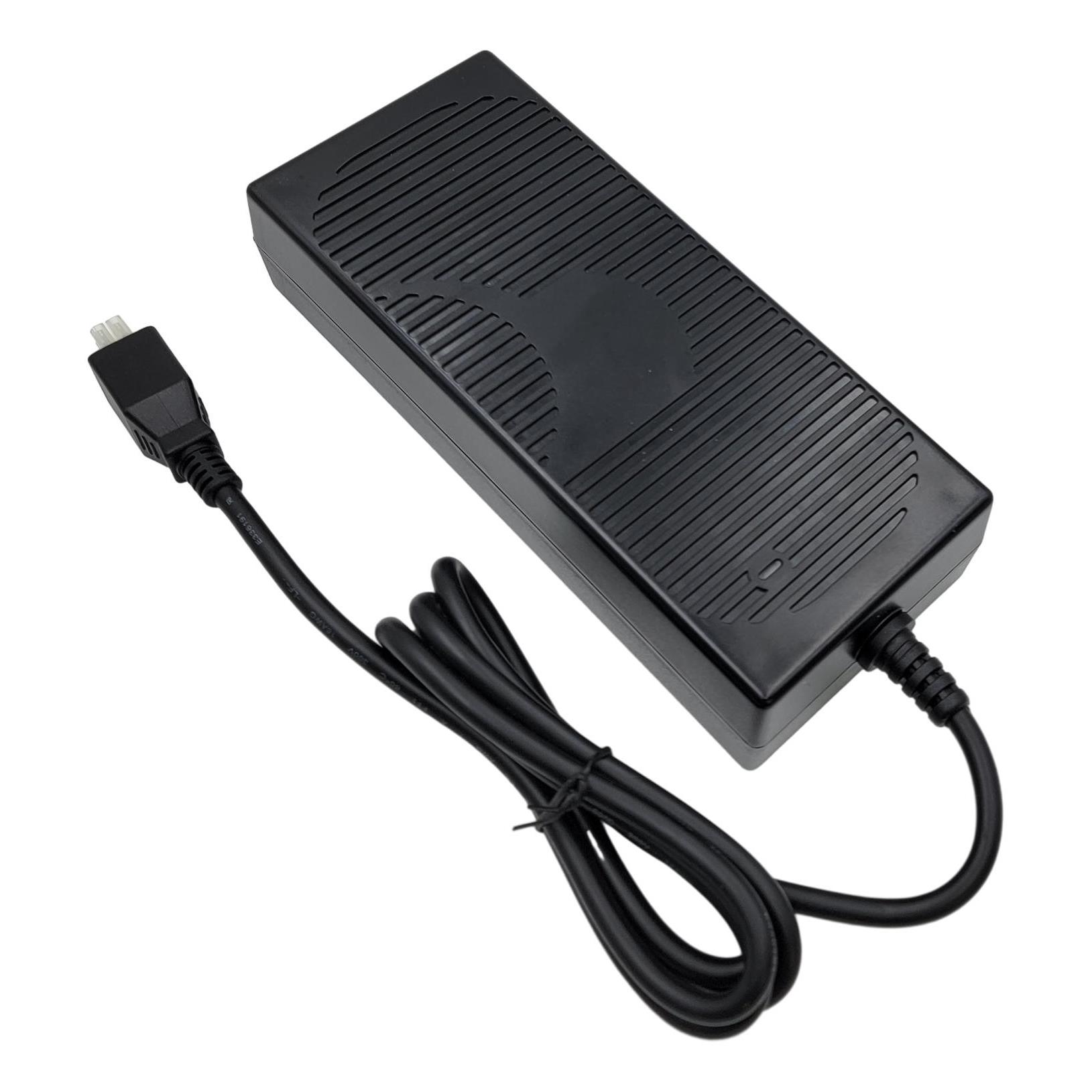

TR9CI7500MF6CIMR6B AC/DC desktop adapter from GlobTek providing 24V at 7.5A (180W) with Level VI and CoC Tier 2 efficiency. Features IEC 320-C14 input and a 6-position rectangular output connector.
Mfr Part #:

TR9CI7500MF6CIMR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
AC/DC desktop adapter from GlobTek providing 24V at 7.5A (180W) with Level VI and CoC Tier 2 efficiency. Features IEC 320-C14 input and a 6-position rectangular output connector.
Stock on Request

TR9CI7500MF6CIMR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

TR9CI7500MF6CIMR6B Description

Short technical summary and product information.

The GlobTek TR9CI7500MF6CIMR6B is a desktop AC/DC adapter delivering 24V at 7.5A with a maximum power of 180W. It meets Level VI and CoC Tier 2 efficiency standards and consumes only 150mW under no load. The adapter operates over a temperature range of -10°C to 40°C.



Mechanically, it is a Class I desktop unit with dimensions 176.5mm x 74.0mm x 40.0mm. Input is via an IEC 320-C14 connector (cord sold separately) and output is through a 6-position rectangular connector with a 47.2-inch (1.20m) cord. The adapter is designed for household appliances, information technology equipment (ITE), and medical applications.



It carries multiple safety approvals including CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, and VCCI, and complies with standards 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.

TR9CI7500MF6CIMR6B Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Canonical Name: GlobTek, Inc. TR9CI7500MF6CIMR6B AC/DC Desktop Adapter

TR9CI7500MF6CIMR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TR9CI7500MF6CIMR6B Features

  • 24V 7.5A 180W output power.
  • Level VI and CoC Tier 2 efficiency.
  • Low no-load power consumption of 150mW.
  • IEC 320-C14 input connector.
  • Desktop Class I form factor.

TR9CI7500MF6CIMR6B Applications

  • Household appliances power supply.
  • Information technology equipment (ITE).
  • Medical equipment applications.

TR9CI7500MF6CIMR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TR9CI7500MF6CIMR6B?

24V

What is the operating temperature range?

-10°C to 40°C

What is the efficiency rating?

Level VI and CoC Tier 2

What input connector does it use?

IEC 320-C14

What output connector does it have?

Rectangular, 6 Position

What safety standards does it comply with?

60335-1, 60601-1-11, 60601-1-2, 60950-1, 62368-1

What applications is it suitable for?

Household Appliances, ITE (Commercial), Medical
