| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

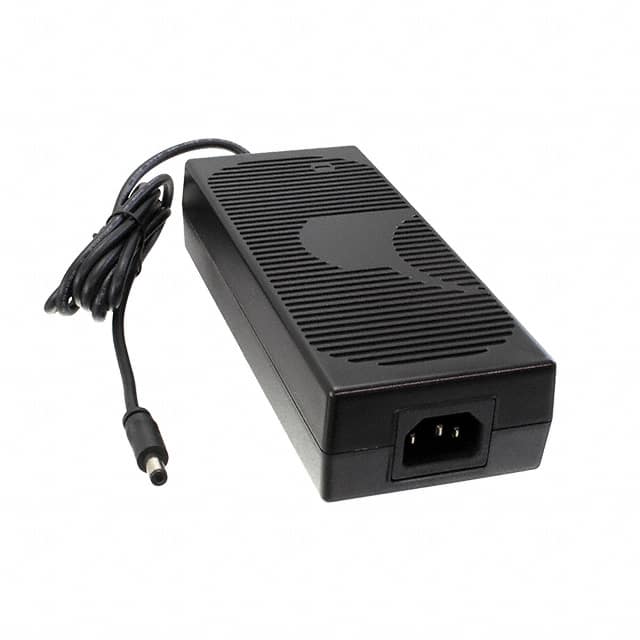

The GlobTek, Inc. TR9CI7500LCPIMR6B is a high-performance AC/DC desktop adapter designed for demanding applications. It delivers a stable 24V output with a maximum current of 7.5A, providing a total power of 180W.
This adapter features an IEC 320-C14 input connector and a barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. It operates within a temperature range of -10°C to 40°C and boasts a low no-load power consumption of 150mW maximum.
Designed for international use, the TR9CI7500LCPIMR6B complies with numerous safety standards including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. It has received approvals from agencies such as CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, and VCCI, making it suitable for household appliances, ITE (commercial), and medical applications.
The adapter has physical dimensions of 176.5mm x 74.0mm x 40.0mm and is classified as Desktop (Class I). The input cord is sold separately and has a length of 47.2 inches (1.20m).
The output voltage is 24V.
The maximum output current is 7.5A.
The total power output is 180W.
It uses an IEC 320-C14 input connector.
The dimensions are 176.5mm x 74.0mm x 40.0mm.
The operating temperature range is -10°C to 40°C.
It has a Level VI, CoC Tier 2 efficiency rating.
