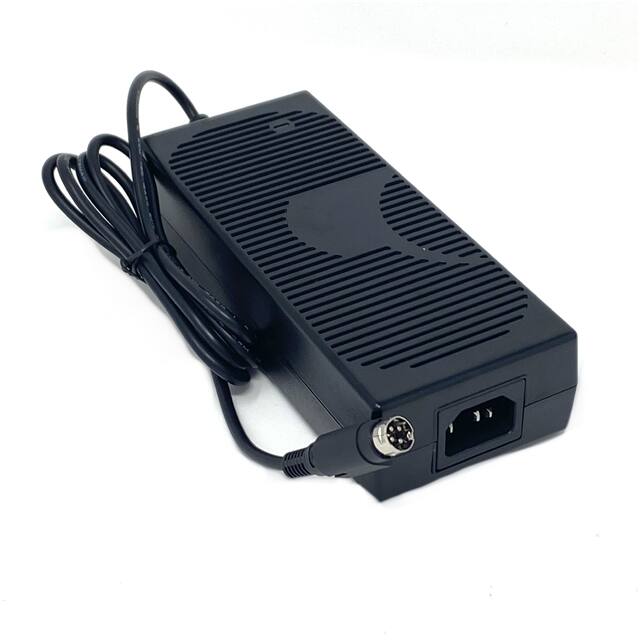

This GlobTek TR9CI6666YL4IMR6B is an AC/DC desktop power adapter designed for international use, operating from 100-240 VAC input. It delivers a stable 24VDC output with a maximum current of 6.66A, providing a total power of 160W. The adapter meets efficiency standards including Level VI and CoC Tier 2, with a low no-load power consumption of 150mW.
The unit features an IEC 320-C14 input connector and a 4-pin Power DIN output connector. Its dimensions are 176.5mm in length, 74.0mm in width, and 40.0mm in height. The operating temperature range is from -10°C to 40°C.
Compliance is supported by numerous agency approvals including CB, CCC, CE, cETLus, EAC, ETL, FCC, PSE, RCM, S-Mark, UKRSepro, and VCCI. It is suitable for applications in Household Appliances, ITE (Commercial), and Medical fields. The adapter is classified as Desktop (Class I) and adheres to standards such as 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
The TR9CI6666YL4IMR6B adapter provides a 24VDC output voltage at a maximum current of 6.66A.
The power rating of the TR9CI6666YL4IMR6B adapter is 160W.
This adapter features an IEC 320-C14 input connector and a 4-pin Power DIN output connector.
The operating temperature range for this adapter is -10°C to 40°C.
The dimensions of the adapter are 176.5mm in length, 74.0mm in width, and 40.0mm in height.
The adapter is suitable for Household Appliances, ITE (Commercial), and Medical applications.
