| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

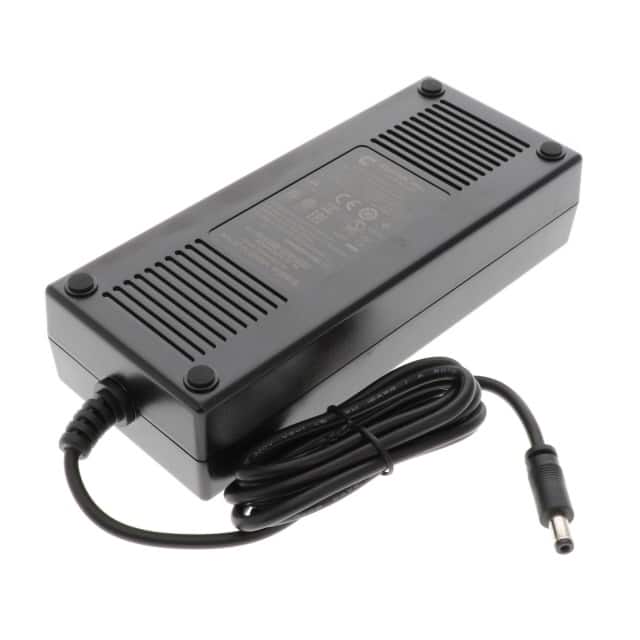

This GlobTek, Inc. AC/DC desktop power supply, model TR9CI6666LCPIMR6B, delivers 160 watts of power with a regulated 24V output at 6.66A. It is designed for universal input, accepting 100-240V AC at 50-60 Hz, and features an IEC 320-C14 input connector.
The power supply meets USA DOE Level VI and EU Eco-design Directive efficiency standards, ensuring energy savings. Its output connector is a 5.5mm x 2.5mm barrel plug with a positive center polarity and a cord length of 1.20 meters. The unit operates within a temperature range of -10°C to 40°C.
With dimensions of 176.5mm x 74.0mm x 40.0mm, this desktop adapter is suitable for various applications including Household Appliances, ITE (Commercial), and Medical equipment. It holds numerous agency approvals such as CB, CCC, CE, cETLus, EAC, ETL, FCC, PSE, RCM, S-Mark, UKRSepro, and VCCI, indicating broad compliance for international use.
The TR9CI6666LCPIMR6B is designed for reliability and performance, adhering to standards like 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. Its no-load power consumption is a maximum of 150mW.
The TR9CI6666LCPIMR6B power supply has an output voltage of 24V and an output current of 6.66A.
The TR9CI6666LCPIMR6B adapter has a power rating of 160W.
This GlobTek power supply accepts an input voltage range of 100-240V AC at frequencies of 50-60 Hz.
The operating temperature range for the TR9CI6666LCPIMR6B is -10°C to 40°C.
The TR9CI6666LCPIMR6B uses an IEC 320-C14 input connector.
The dimensions of the TR9CI6666LCPIMR6B desktop adapter are 176.5mm x 74.0mm x 40.0mm.
The TR9CI6666LCPIMR6B power supply is suitable for Household Appliances, ITE (Commercial), and Medical applications.
