| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

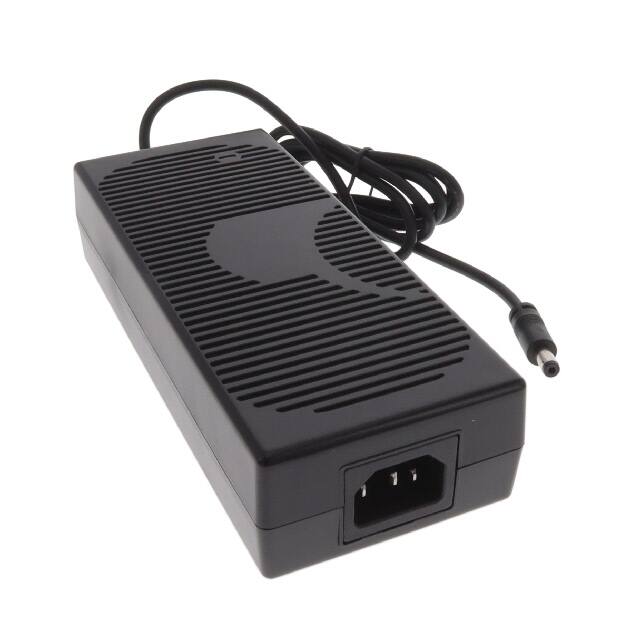

This GlobTek, Inc. AC/DC desktop power supply, part number TR9CI6666CCPCIMR6B, delivers 160W of power with a regulated 24V output at 6.66A. It is designed for international use, accepting an input voltage range of 100-240V AC at 50-60 Hz.
The power supply utilizes an IEC 60320/C14 input connector and features a standard barrel output connector with dimensions of 5.5mm outer diameter and 2.1mm inner diameter, with a length of 11.0mm. The output polarization is center positive. It operates within a temperature range of -10°C to 40°C and meets Efficiency Level VI and CoC Tier 2 standards.
Designed for applications including Household Appliances, ITE (Commercial), and Medical equipment, the TR9CI6666CCPCIMR6B has received numerous agency approvals such as CB, CCC, CE, cETLus, EAC, ETL, FCC, PSE, RCM, S-Mark, UKRSepro, and VCCI. The unit has a no-load power consumption of 150mW maximum. The input cord is sold separately.
100-240 VAC at 50-60 Hz.
24V at 6.66A (160W).
-10°C to 40°C.
Level VI and CoC Tier 2.
Barrel plug, 2.1mm ID x 5.5mm OD x 11.0mm, positive center.
CB, CCC, CE, cETLus, EAC, ETL, FCC, PSE, RCM, S-Mark, UKRSepro, VCCI.
176.5mm x 74.0mm x 40.0mm (6.95" x 2.91" x 1.58").
