| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

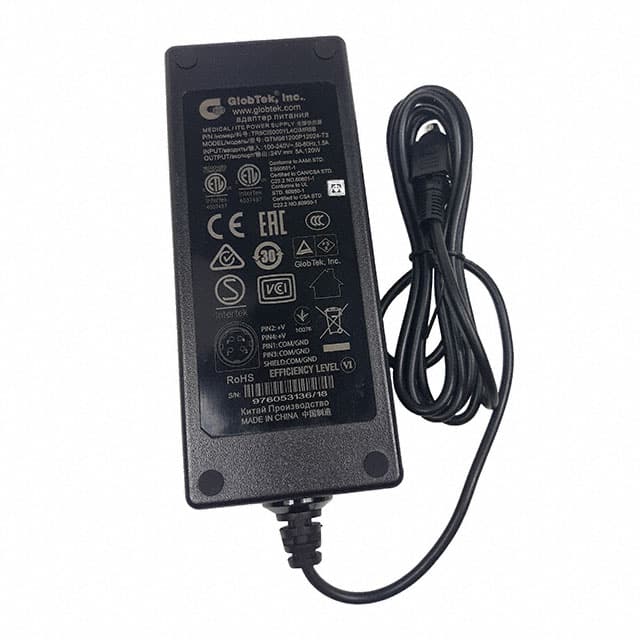

This GlobTek, Inc. AC/DC desktop adapter, part number TR9CI5000YL4CIMR6B, provides a 120W power output with a 24V and 5A rating. It is designed for international use and meets Level VI efficiency standards.
The adapter features an IEC 320-C14 input connector and a 4-pin Power DIN output connector. Its dimensions are 149.3mm x 62.8mm x 34.0mm. The operating temperature range is -20°C to 40°C.
Applications for this adapter include household appliances, ITE (Commercial), and medical equipment. It is certified by multiple agencies including CE, cETLus, and PSE, adhering to standards such as 60335-1 and 60601-1-11. The adapter has a low no-load power consumption of 150mW (Max).
The output voltage is 24V DC.
The output current is 5A with a maximum power of 120W.
It meets Level VI efficiency standard.
The operating temperature range is -20°C to 40°C.
Input is IEC 320-C14; output is Power DIN 4-pin.
It is certified for household appliances, ITE (commercial), and medical applications.
It complies with 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61347-1, and 62368-1.
