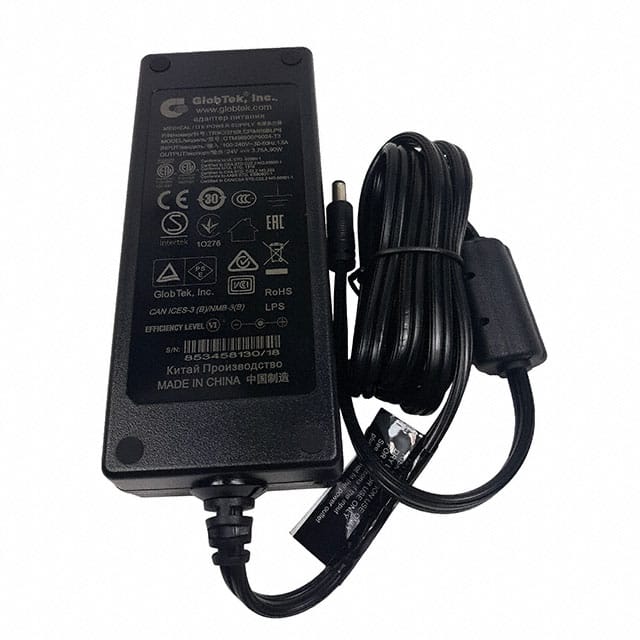

TR9CI3750LCPIMR6BLPS The GlobTek, Inc. TR9CI3750LCPIMR6BLPS is a 90W AC/DC desktop adapter with a 24V output at 3.75A. It meets Level VI efficiency standards.
Mfr Part #:

TR9CI3750LCPIMR6BLPS

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. TR9CI3750LCPIMR6BLPS is a 90W AC/DC desktop adapter with a 24V output at 3.75A. It meets Level VI efficiency standards.
Stock on Request

TR9CI3750LCPIMR6BLPS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

TR9CI3750LCPIMR6BLPS Description

Short technical summary and product information.

This GlobTek, Inc. TR9CI3750LCPIMR6BLPS is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a 90W output with a voltage of 24.0V and a current rating of 3.75A.



The adapter features an input rating of 100-240V~ at 50-60Hz and utilizes an IEC 60320/C14 input connector. The output is delivered via a female barrel connector with dimensions 5.5mm outer diameter and 2.5mm inner diameter, measuring 11.0mm in length. The output configuration includes a 1.53m cord with positive center polarization.



Designed for various applications including Household Appliances, ITE (Commercial), and Medical, this adapter complies with Efficiency Level VI and relevant international standards. Its dimensions are 149.3mm in length, 62.8mm in width, and 34.0mm in height. The operating temperature range is from 0°C to 50°C.

TR9CI3750LCPIMR6BLPS Quick Information

Product Type: AC DC Desktop, Wall Adapter
Canonical Name: GlobTek, Inc. TR9CI3750LCPIMR6BLPS AC/DC Desktop Adapter
Subcategory: Desktop/External

TR9CI3750LCPIMR6BLPS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TR9CI3750LCPIMR6BLPS Features

  • 90W total output power.
  • 24V output voltage at 3.75A.
  • 100-240 VAC universal input.
  • IEC 320-C14 input connector.
  • Level VI efficiency rating.

TR9CI3750LCPIMR6BLPS Applications

  • Suitable for medical equipment.
  • Ideal for ITE commercial devices.
  • Powers household appliances.
  • General purpose power supply needs.

TR9CI3750LCPIMR6BLPS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TR9CI3750LCPIMR6BLPS?

100-240 VAC at 50-60 Hz.

What is the output voltage and current?

24V DC at 3.75A, 90W.

What is the operating temperature range?

0°C to 50°C.

What is the efficiency rating?

Level VI.

What are the dimensions of the adapter?

149.3mm x 62.8mm x 34.0mm.

What type of output connector does it have?

Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm, positive center.

What is the input connector type?

IEC 320-C14.
