| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

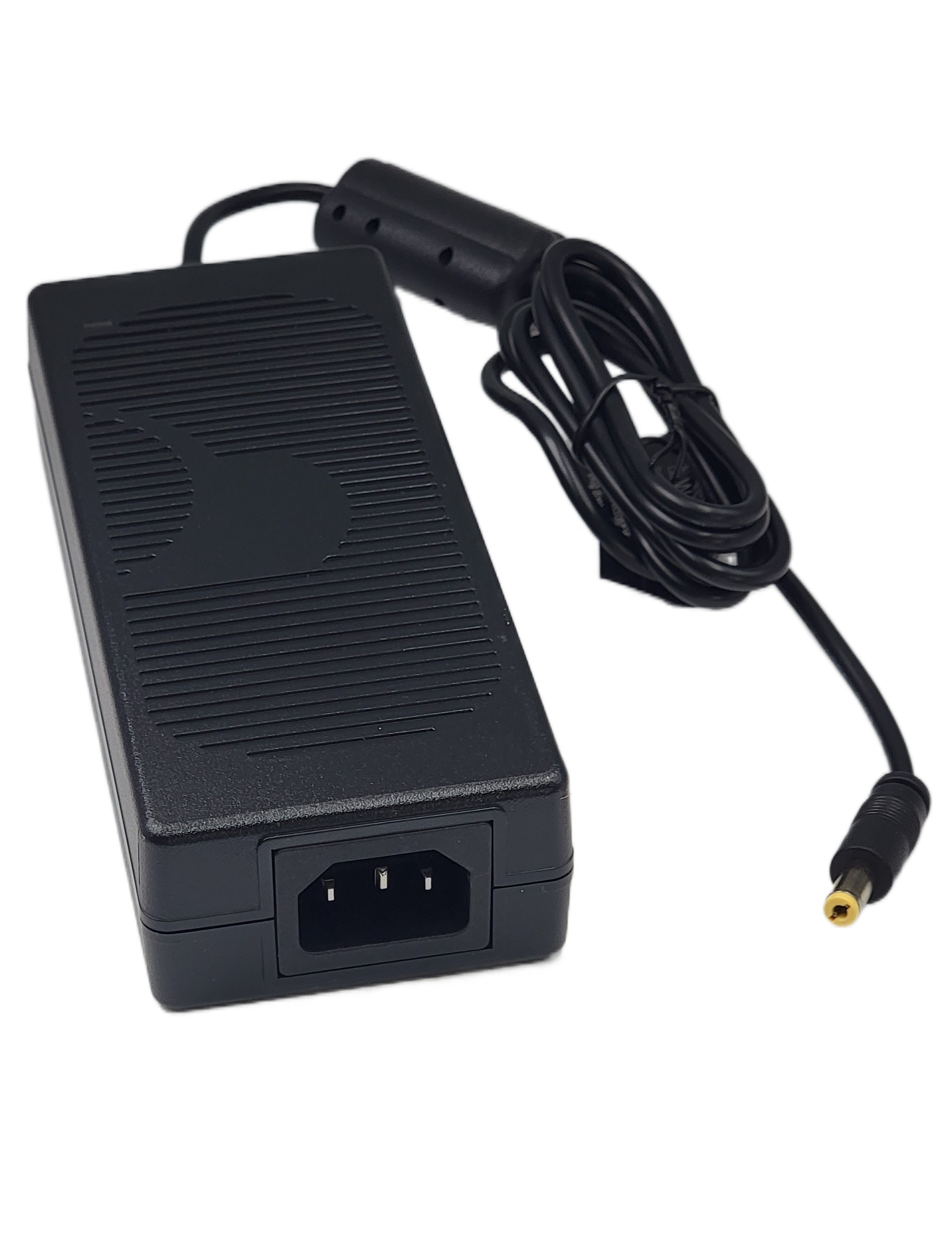

The GlobTek TR9CI3750CCP-IM(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It delivers a continuous output power of 90W, with a voltage of 24V and a current rating of 3.75A.
This power adapter features a universal input voltage range of 100-240V AC at 50-60Hz, making it suitable for international applications. It meets Efficiency Level VI standards for energy conservation. The device operates within a temperature range of 0°C to 50°C.
Connectivity is established via an IEC 60320-C14 input connector and a standard barrel plug output (2.1mm ID x 5.5mm OD). The output cord has a length of 1.20 meters (47.2 inches) and features center-positive polarization. The unit is housed in a black desktop case and is classified as Class I.
Key approvals include CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, indicating compliance with various international safety and performance standards. Applications include Household Appliances, ITE (Commercial), and Medical devices.
The adapter provides 24V DC at 3.75A, delivering 90W of power.
It supports a universal input of 100-240 VAC at 50-60 Hz.
It meets Level VI efficiency standard.
It operates from 0°C to 50°C.
It has a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter (center positive), 11.0mm length.
It is approved by CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI.
The output is center positive.
