| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

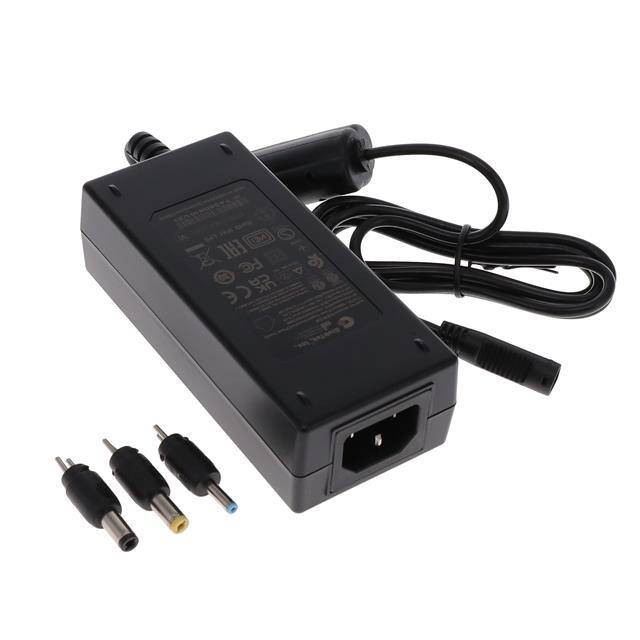

This GlobTek, Inc. AC-DC power supply, model TR9CI2700T00IMCFR6B, is designed as a desktop or wall-mountable adapter. It delivers a regulated 24V output at 2.7A, providing a total of 65W of power.
The unit accepts a wide input voltage range of 100-240V AC at 50-60Hz, making it suitable for international use. It features an IEC 60320/C14 input connector and comes with a T-plug system that includes interchangeable 5.5x2.5mm, 5.5x2.1mm, and 3.5x1.3mm plugs.
Designed for efficiency, it meets USA DOE Level VI and Eco-design Directive 2009/125/EC standards. The adapter operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW maximum. Its dimensions are 117.5mm in length, 53.5mm in width, and 34.2mm in height.
This power supply is suitable for various applications, including medical equipment, and carries multiple agency approvals such as cETLus, CE, and FCC. The input cord is sold separately.
The output voltage is 24V and the output current is 2.7A.
The input voltage range is 100-240 VAC at 50-60 Hz.
The operating temperature range is -20°C to 40°C.
It meets Level VI and CoC Tier 2 efficiency standards.
It uses a T-plug system with a barrel plug kit including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm plugs.
Yes, it is designed for medical applications and complies with standard 60601-1.
